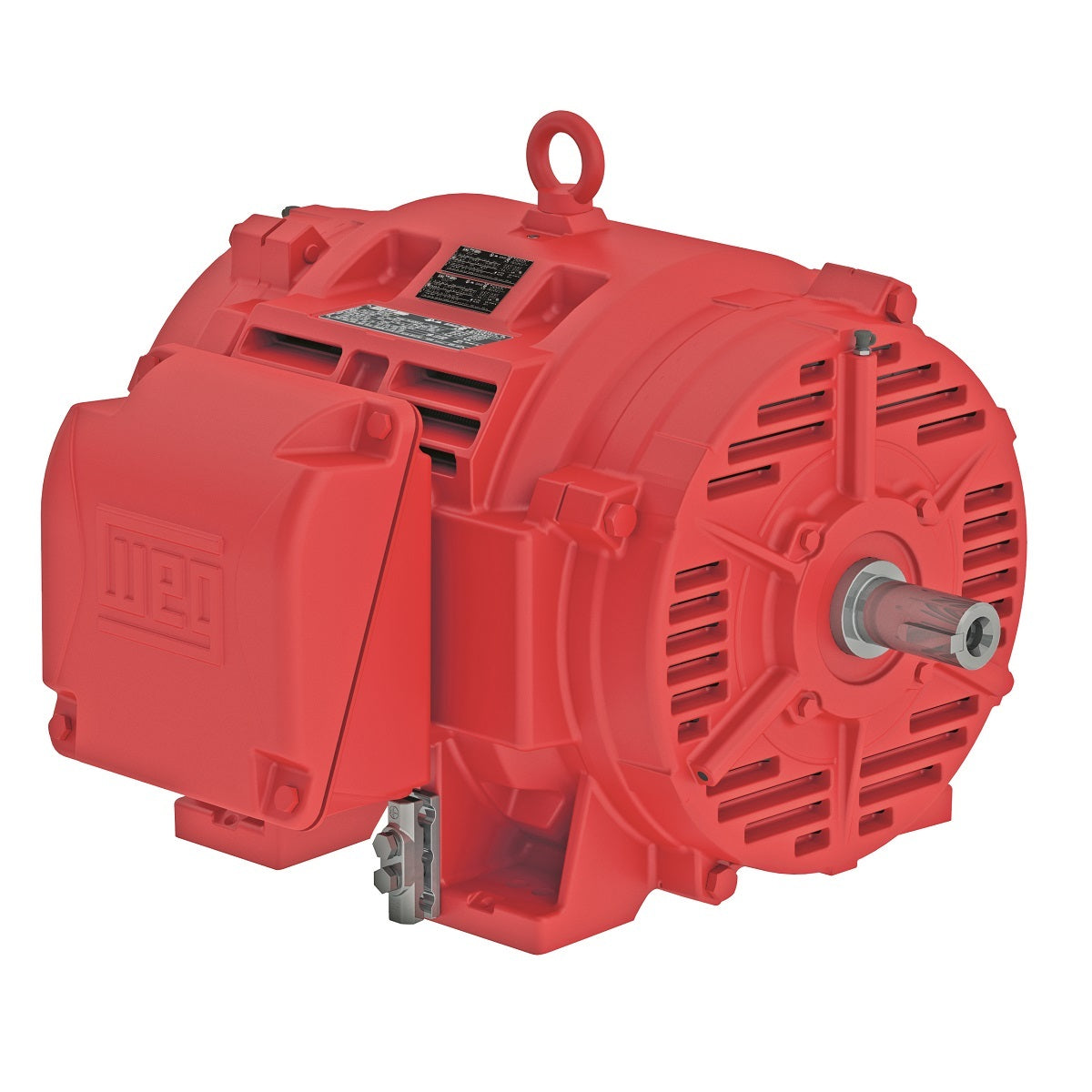

Weg Electric 07518OP3VFP365TS-W40, 75 Hp, 364/5TS Frame, 1800 RPM, 200/400 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

07518OP3VFP365TS-W40, 75 Hp, 364/5TS Frame, 1800 RPM, 200/400 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 75 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 200/400 V
Rated current 196/98.1 A
L. R. Amperes 1236/618 A
LRC 6.3x(Code G)
No load current 57.5/28.8 A
Rated torque 222 ft.lb
Locked rotor torque 180 %
Breakdown torque 229 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 15.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
