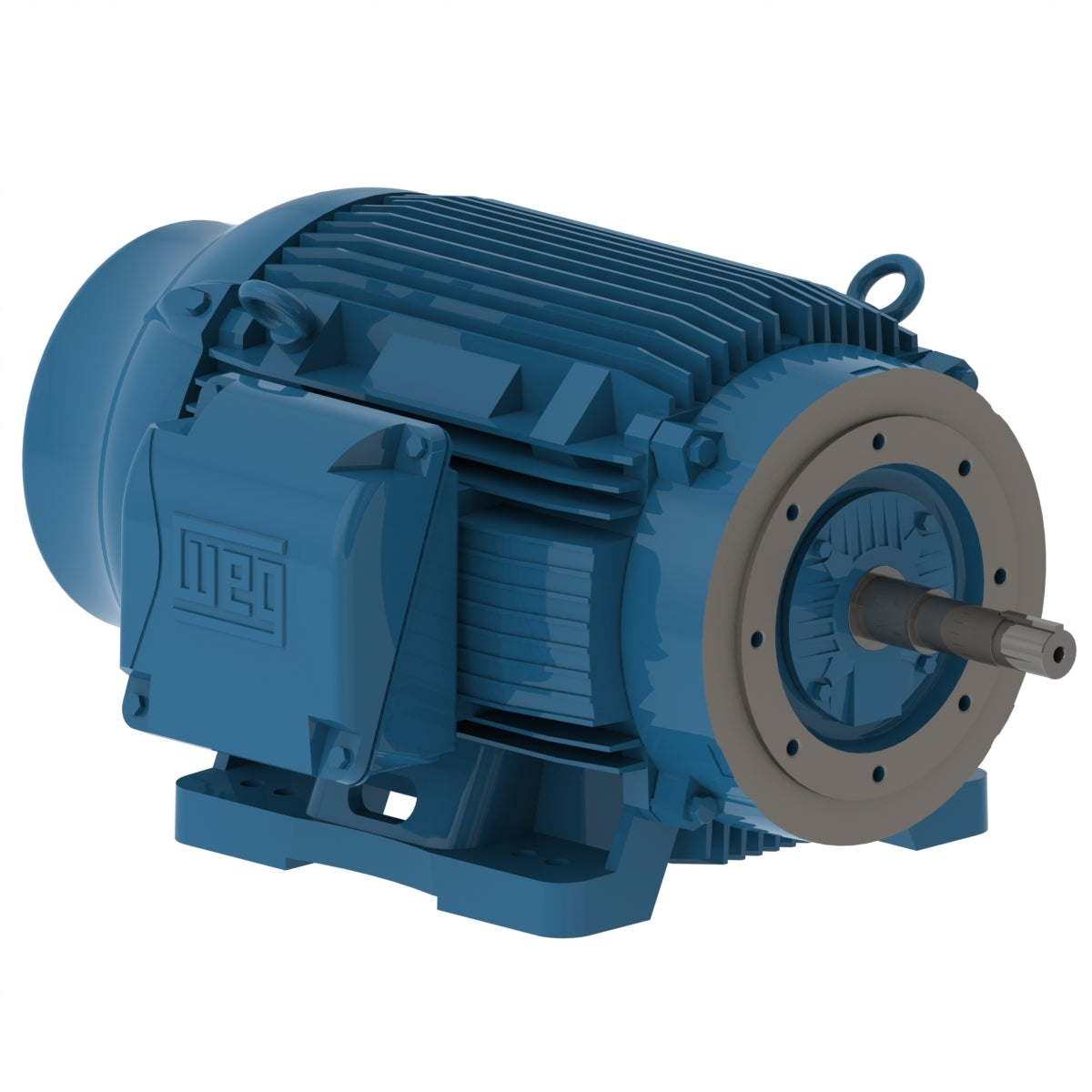

Weg Electric 07536ET3E365JP-W22, 75 Hp, 3600 Rpm, 364/5JP Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Premium Efficiency.

07536ET3E365JP-W22, 75 Hp, 3600 Rpm, 364/5JP Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 75 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 364/5JP
Output 75 HP (55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 164/81.9 A
L. R. Amperes 1097/549 A
LRC 6.7x(Code G)
No load current 40.0/20.0 A
Rated torque 111 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
