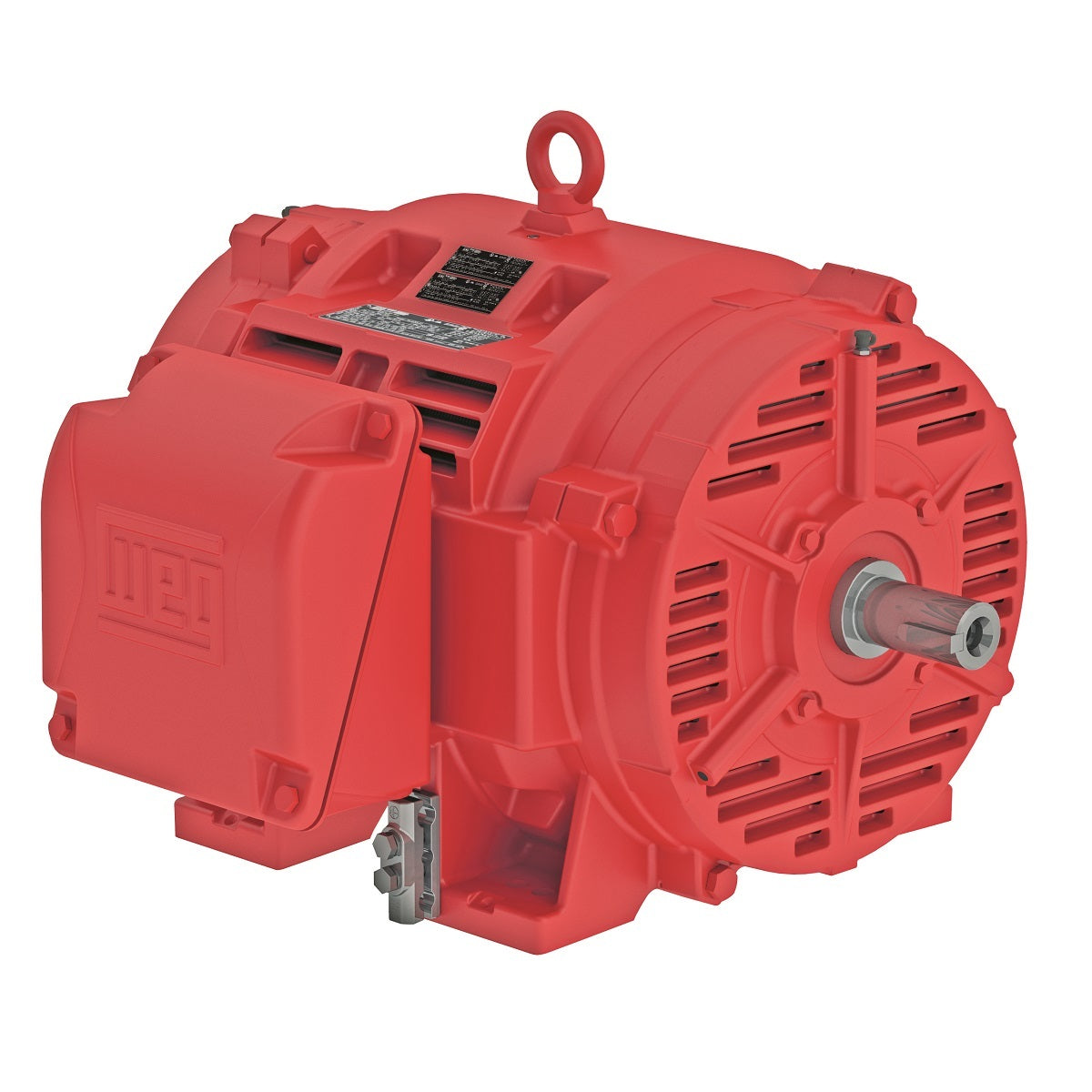

Weg Electric 07536OP3HFP364TS-W40, 75 Hp, 364/5TS Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

07536OP3HFP364TS-W40, 75 Hp, 364/5TS Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 75 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 575 V
Rated current 68.2 A
L. R. Amperes 396 A
LRC 5.8x(Code F)
No load current 20.2 A
Rated torque 111 ft.lb
Locked rotor torque 160 %
Breakdown torque 210 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 5.60 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
