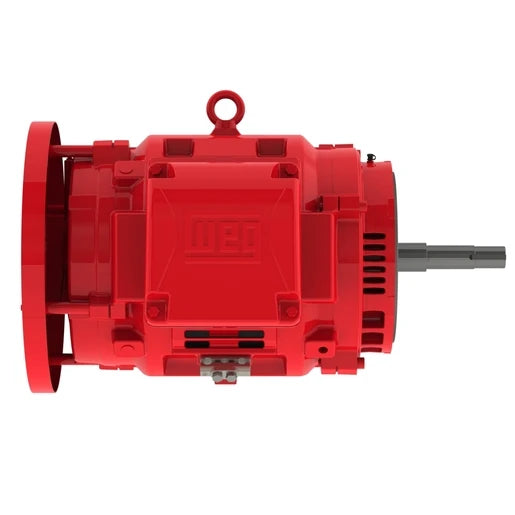

Weg Electric, 07536OP3VFP364JPV-W4, 75 Hp, 3600 Rpm, 364/5JP Frame, 200-208/400 Vac, ODP, 3 PH, Footless, JP Pump NEMA Premium Efficiency, 14829612

Weg Electric, 07536OP3VFP364JPV-W4, 75 Hp, 3600 Rpm, 364/5JP Frame, 200-208/400 Vac, ODP, 3 PH, Footless, JP Pump NEMA Premium Efficiency, 14829612

$6,691.25
$6,691.25
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, 07536OP3VFP364JPV-W4, 75 Hp, 3600 Rpm, 364/5JP Frame, 200-208/400 Vac, ODP, 3 PH, Footless, JP Pump NEMA Premium Efficiency, 14829612

SPECIFICATIONS

Frame 364/5JP
Output 75 HP (55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 200-208/400 V
Rated current 196-186/98.1 A
L. R. Amperes 1138-1081/569 A
LRC 5.8x(Code F)
No load current 50.6-37.9/25.3 A
Rated torque 111 ft.lb
Locked rotor torque 160 %
Breakdown torque 210 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 5.60 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Approx. weight³ 703 lb
