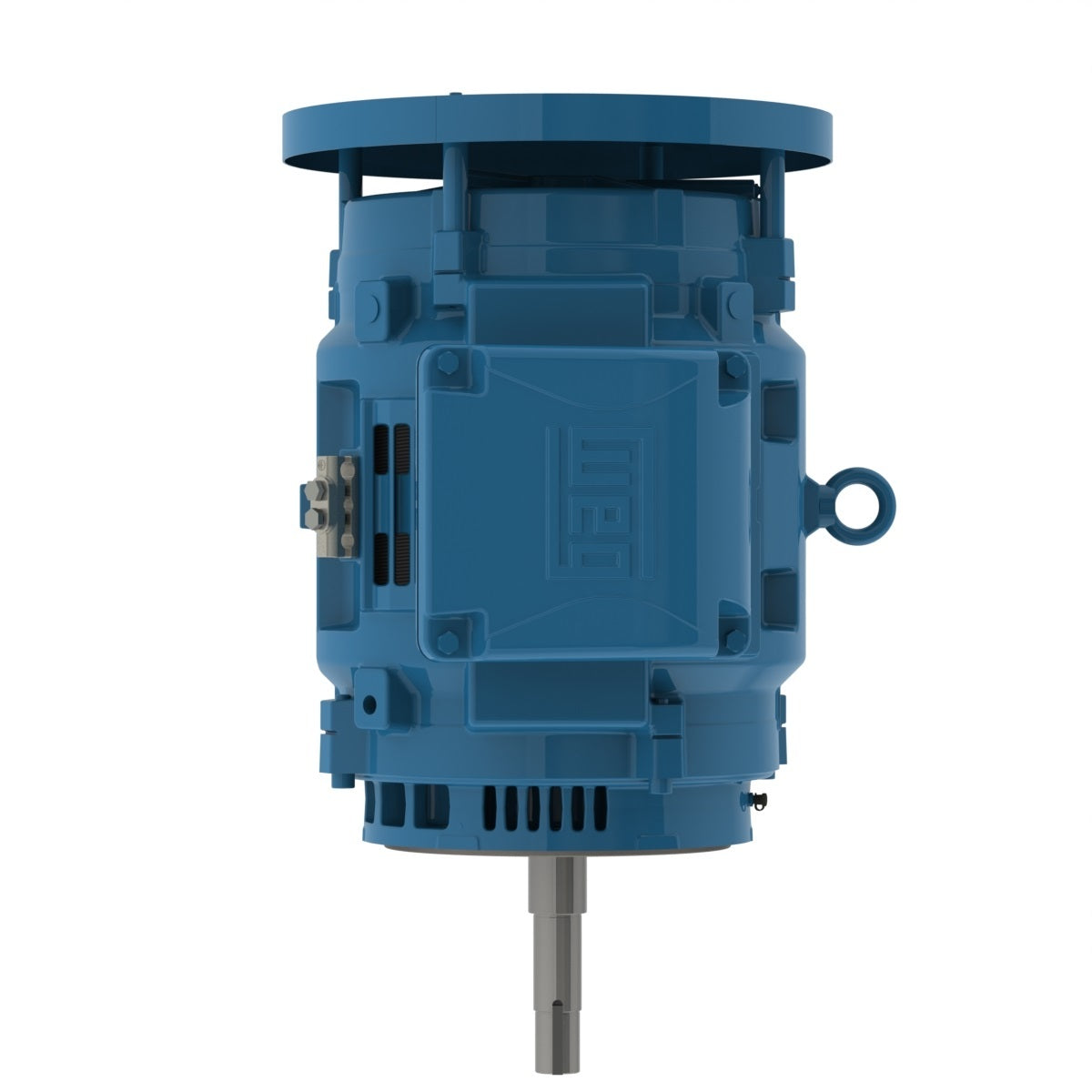

Weg Electric 07536OT3H364JMV-W40, 75 Hp, 364/5JM Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Footless, W40 JM Pump NEMA Premium Efficiency.

07536OT3H364JMV-W40, 75 Hp, 364/5JM Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Footless, W40 JM Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 75 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 364/5JM
Output 75 HP (55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 575 V
Rated current 67.8 A
L. R. Amperes 448 A
LRC 6.6x(Code G)
No load current 17.2 A
Rated torque 111 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 6.40 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 84.0 dB(A)
