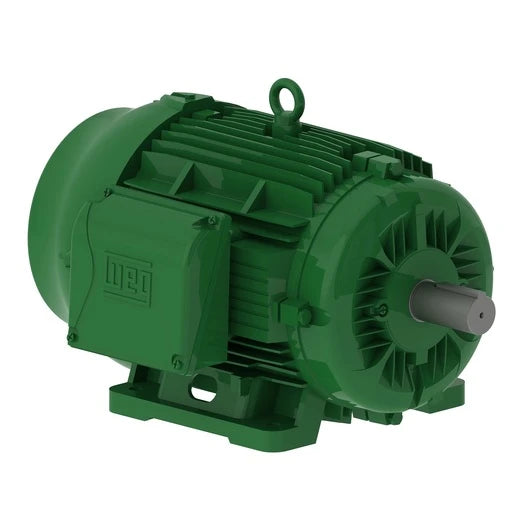

Weg Electric 10018EG3E405T-W22, 100 Hp, 1800 Rpm, 404/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 13977449

Weg Electric 10018EG3E405T-W22, 100 Hp, 1800 Rpm, 404/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 13977449

$11,443.62
$11,443.62
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 10018EG3E405T-W22, 100 Hp, 1800 Rpm, 404/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 13977449

SPECIFICATIONS

Frame 404/5T
Output 100 HP (75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1785 rpm
Slip 0.83 %
Rated voltage 230/460 V
Rated current 232/116 A
L. R. Amperes 2297/1148 A
LRC 9.9x(Code L)
No load current 94.0/47.0 A
Rated torque 294 ft.lb
Locked rotor torque 330 %
Breakdown torque 350 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 28.7 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1234 lb
