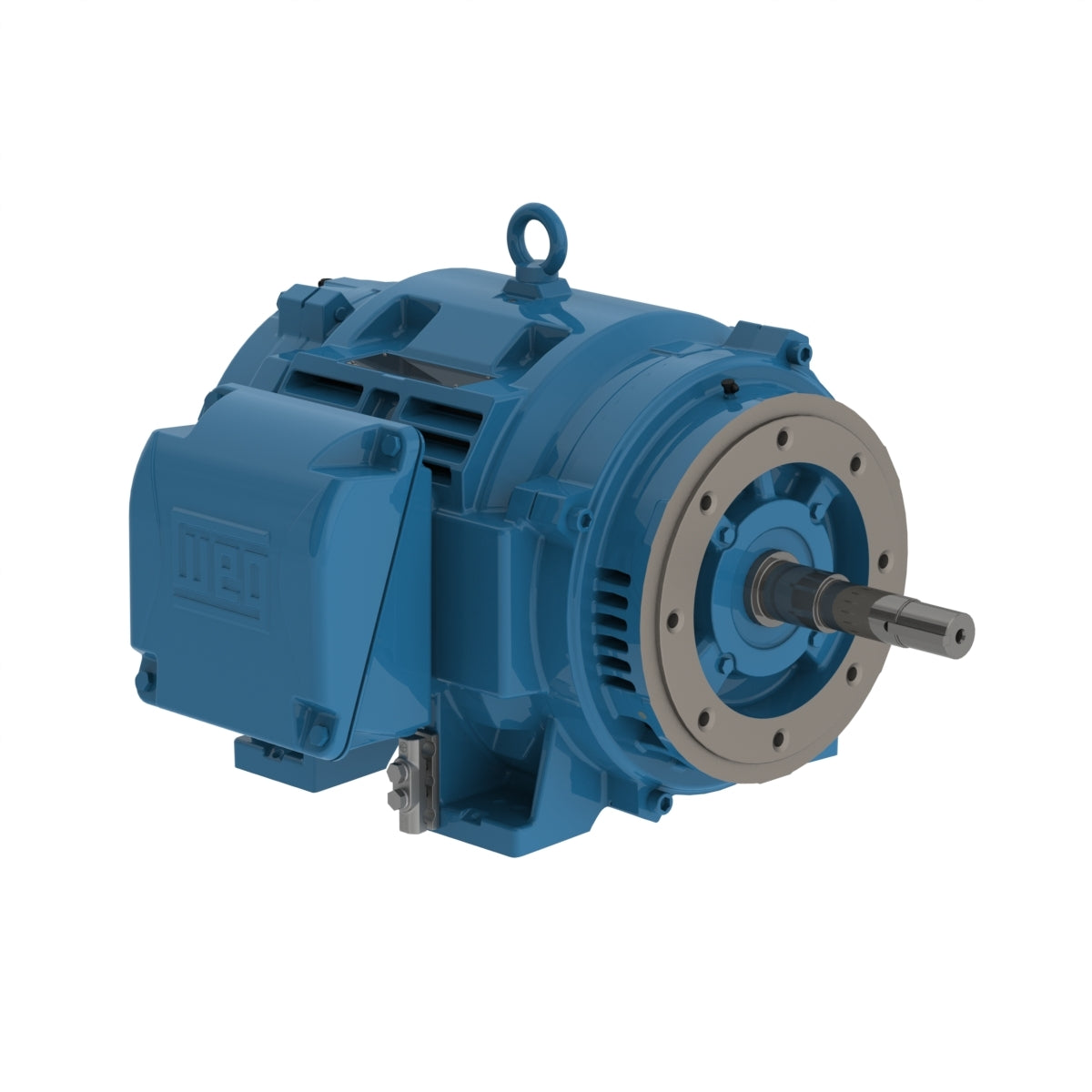

Weg Electric 10018OT3E404TC-W40, 100 Hp, 1800 Rpm, 404/5TC Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

10018OT3E404TC-W40, 100 Hp, 1800 Rpm, 404/5TC Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 100 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 404/5TC
Output 100 HP (75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 230/115 A
L. R. Amperes 1564/782 A
LRC 6.8x(Code G)
No load current 79.4/39.7 A
Rated torque 295 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 21.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
