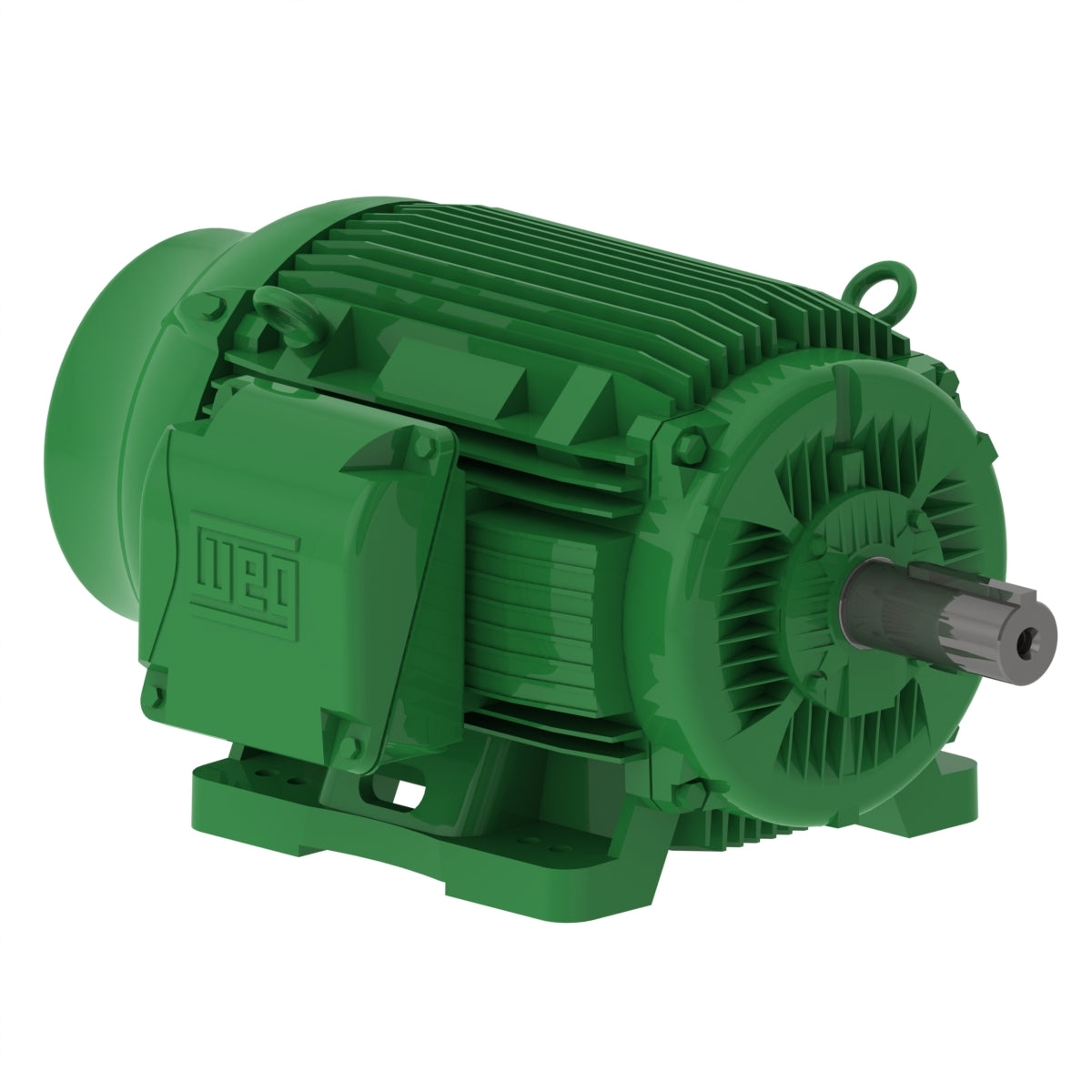

Weg Electric 10036EG3E405TS-W22, 100 Hp, 404/5TS Frame, 3600 RPM, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Super Premium Efficiency.

10036EG3E405TS-W22, 100 Hp, 404/5TS Frame, 3600 RPM, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Super Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Carry CSA Certified for Division 2 on the Nameplate as standard.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 100 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 404/5TS
Output 100 HP (75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 230/460 V
Rated current 222/111 A
L. R. Amperes 1776/888 A
LRC 8.0x(Code H)
No load current 64.0/32.0 A
Rated torque 147 ft.lb
Locked rotor torque 290 %
Breakdown torque 320 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 14.3 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
