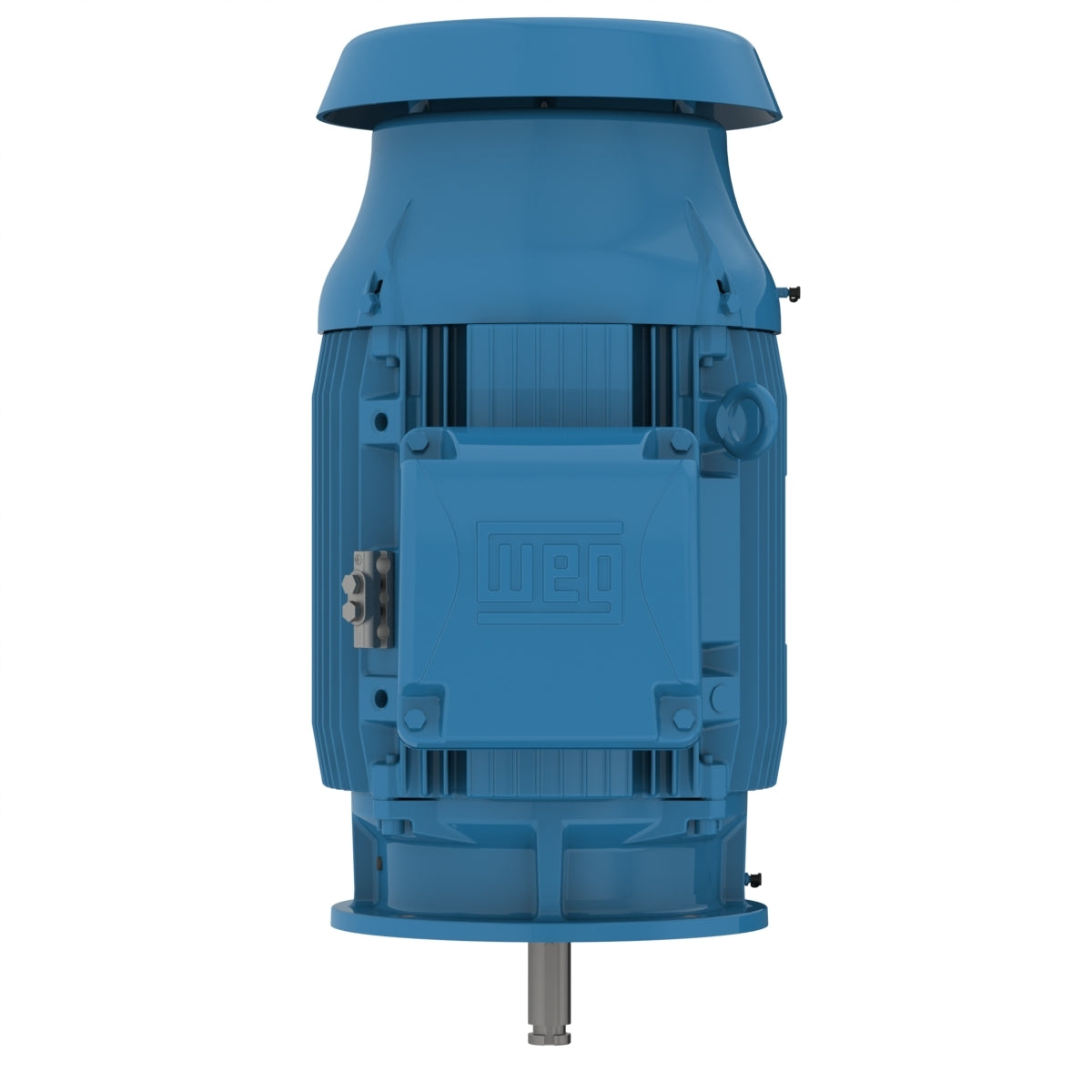

Weg Electric 10036ET3G405HPH-W22, 100 Hp, 404/5HPH Frame, 3600 RPM, 460 Vac, TEFC, 3 PH, Footless, W22 P Base NEMA Premium Efficiency.

10036ET3G405HPH-W22, 100 Hp, 404/5HPH Frame, 3600 RPM, 460 Vac, TEFC, 3 PH, Footless, W22 P Base NEMA Premium Efficiency.

Engineering Data

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 100 HP
Mounting Footless
Flange P
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 404/5HPH
Output 100 HP (75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3545 rpm
Slip 1.53 %
Rated voltage 460 V
Rated current 112 A
L. R. Amperes 728 A
LRC 6.5x(Code G)
No load current 26.0 A
Rated torque 148 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 13.2 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
