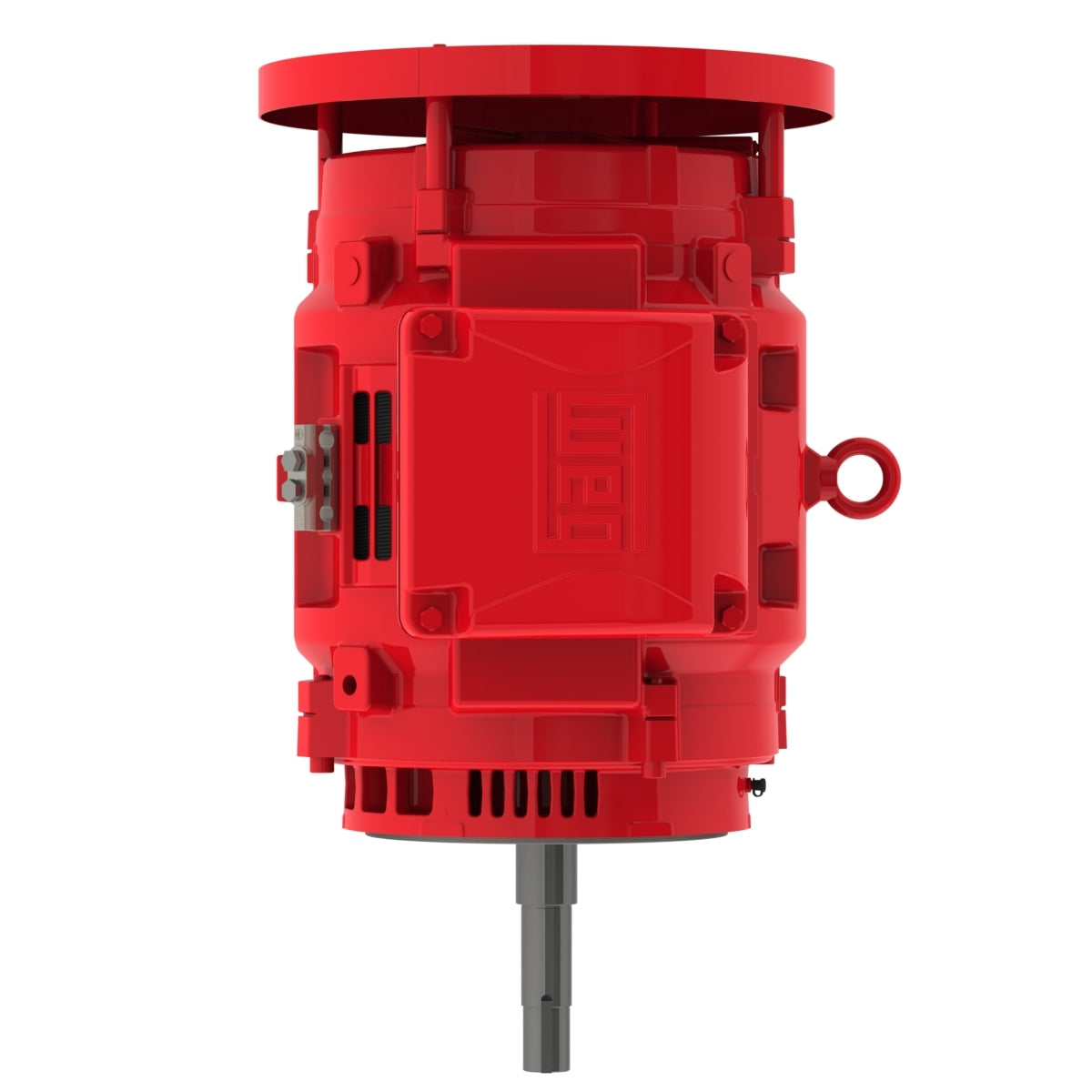

Weg Electric 10036OP3HFP365JPV-W4, 100 Hp, 364/5JP Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Footless, W40 JP Pump High Efficiency.

10036OP3HFP365JPV-W4, 100 Hp, 364/5JP Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Footless, W40 JP Pump High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 100 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 364/5JP
Output 100 HP (75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 575 V
Rated current 92.0 A
L. R. Amperes 524 A
LRC 5.7x(Code F)
No load current 20.8 A
Rated torque 148 ft.lb
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 6.80 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
