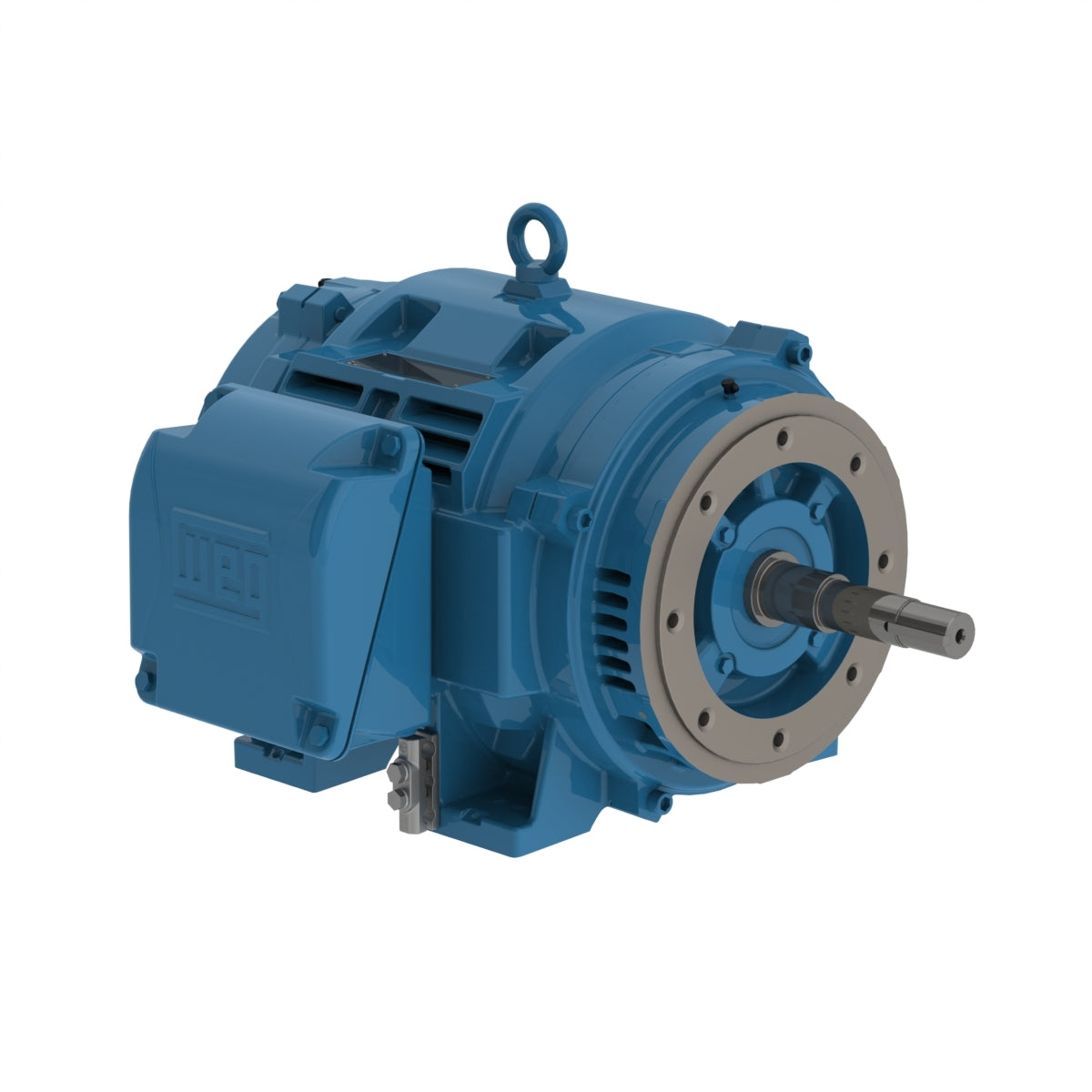

Weg Electric 10036OT3E365JP-W40, 100 Hp, 364/5JP Frame, 3600 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

10036OT3E365JP-W40, 100 Hp, 364/5JP Frame, 3600 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 100 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 364/5JP
Output 100 HP (75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 232/116 A
L. R. Amperes 1531/766 A
LRC 6.6x(Code G)
No load current 59.0/29.5 A
Rated torque 148 ft.lb
Locked rotor torque 180 %
Breakdown torque 229 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 84.0 dB(A)
