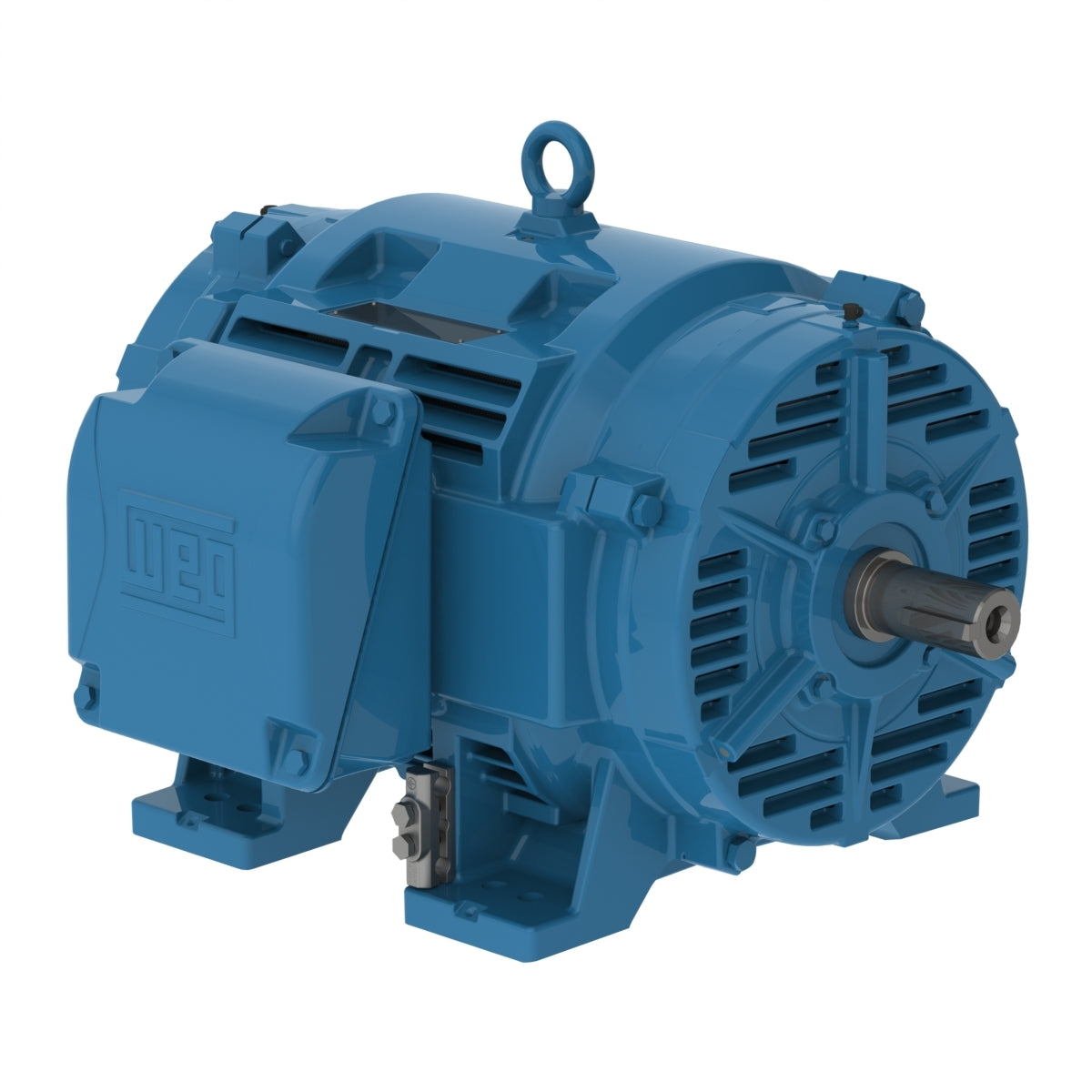

Weg Electric 10036OT3G365TS-RFW40, 100 Hp, 3600 Rpm, 364/5TS Frame, 460 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

10036OT3G365TS-RFW40, 100 Hp, 3600 Rpm, 364/5TS Frame, 460 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.
Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 100 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 364/5TS
Output 100 HP (75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 460 V
Rated current 116 A
L. R. Amperes 766 A
LRC 6.6x(Code G)
No load current 29.5 A
Rated torque 148 ft.lb
Locked rotor torque 180 %
Breakdown torque 229 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 84.0 dB(A)
