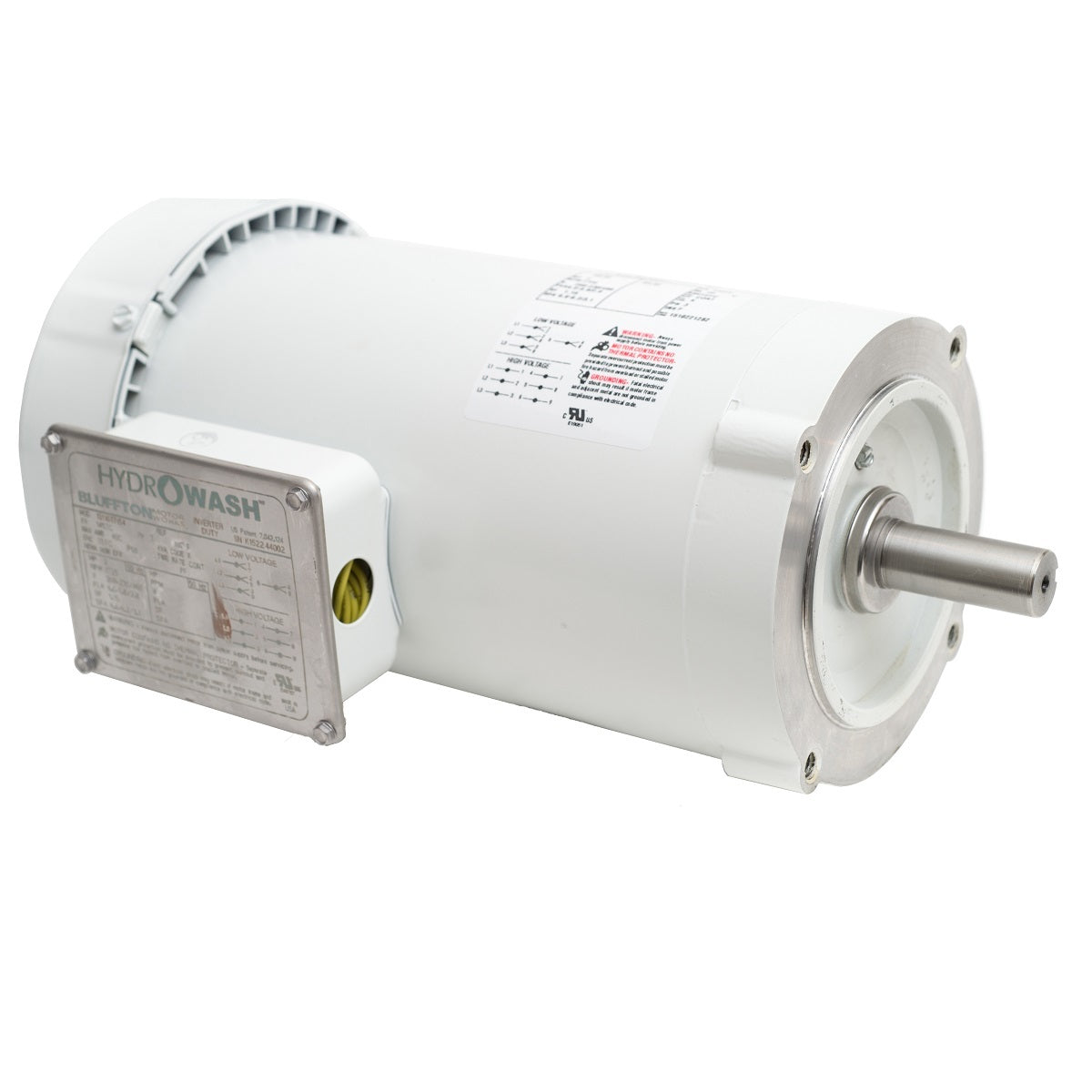

Weg Electric 1111006411, 1/3 Hp, 56C Frame, 1800 RPM, 115/208-230 Vac, TEFC, 3 PH, Footless, HydroWash Standard Efficiency.

1111006411, 1/3 Hp, 56C Frame, 1800 RPM, 115/208-230 Vac, TEFC, 3 PH, Footless, HydroWash Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frame 56C
Frequency 60 Hz
Number of poles 4
Degree of Protection IP56
Synchronous speed 1800 rpm
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Output rating 0.33 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Rolled Steel
Mounting Footless
Efficiency Standard Efficiency
Motor Application HydroWash
Terminal box¹ Left position
Frame 56C
Voltage 115/208-230 V
Synchronous speed 1800 rpm
Frame Material Rolled Steel
Number of Poles 04
