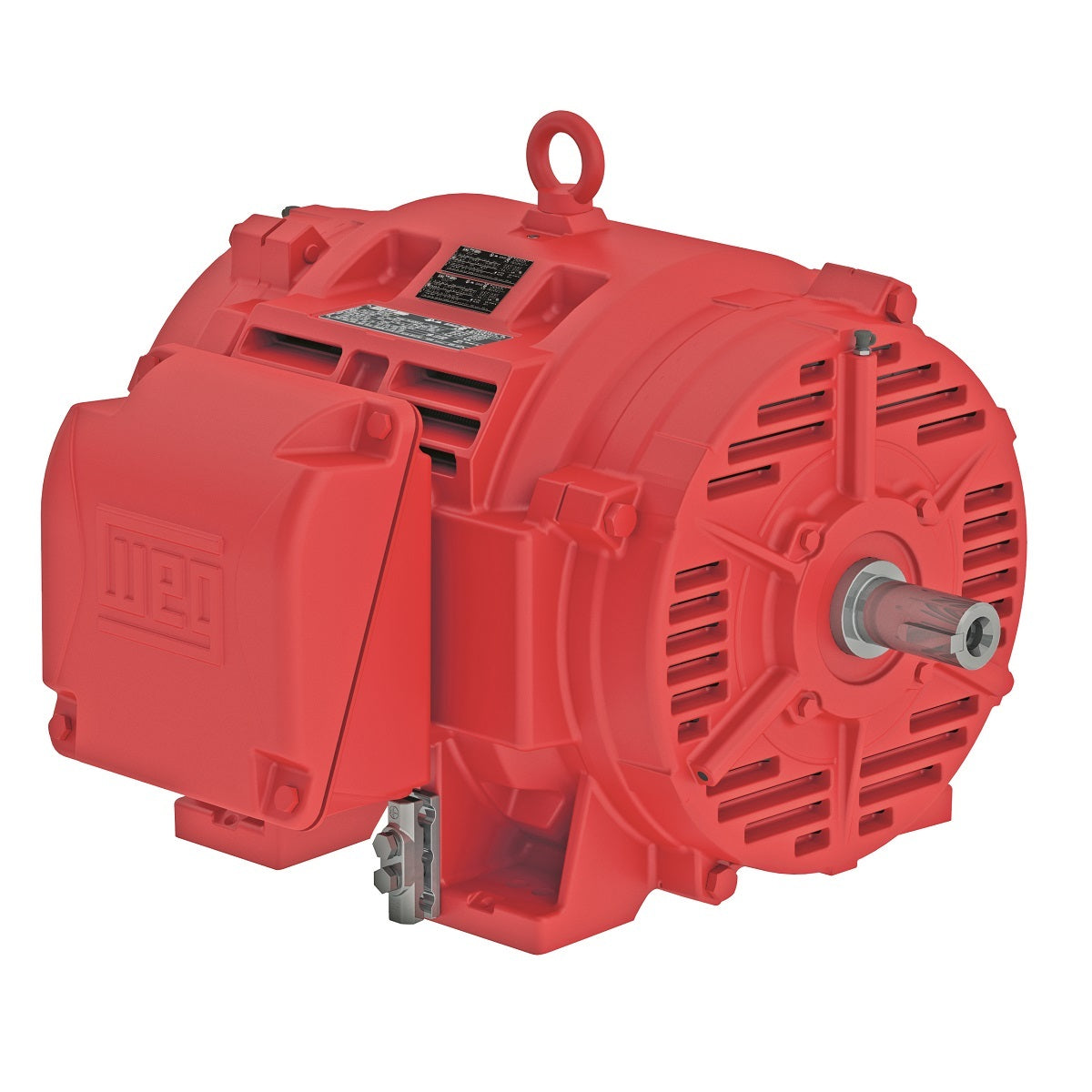

Weg Electric 12518OP3HFP405TS-W40, 125 Hp, 404/5TS Frame, 1800 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

12518OP3HFP405TS-W40, 125 Hp, 404/5TS Frame, 1800 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 125 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 404/5TS
Output 125 HP
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 575 V
Rated current 111 A
L. R. Amperes 723 A
LRC 6.5x(Code G)
No load current 30.4 A
Rated torque 370 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 21.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
