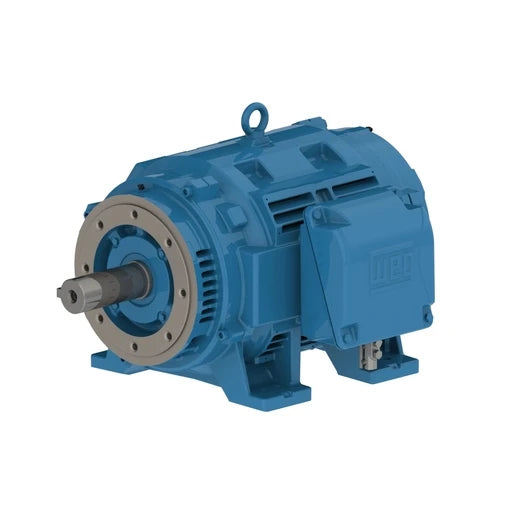

Weg Electric 12518OT3G405TSCF2-W4, 125 Hp, 1800 Rpm, 404/5TSC Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14284976

Weg Electric 12518OT3G405TSCF2-W4, 125 Hp, 1800 Rpm, 404/5TSC Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14284976

$7,500.03
$7,500.03
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 12518OT3G405TSCF2-W4, 125 Hp, 1800 Rpm, 404/5TSC Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14284976

SPECIFICATIONS

Frame 404/5TSC
Output 125 HP
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 138 A
L. R. Amperes 952 A
LRC 6.9x(Code G)
No load current 47.0 A
Rated torque 369 ft.lb
Locked rotor torque 270 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 25.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1070 lb
