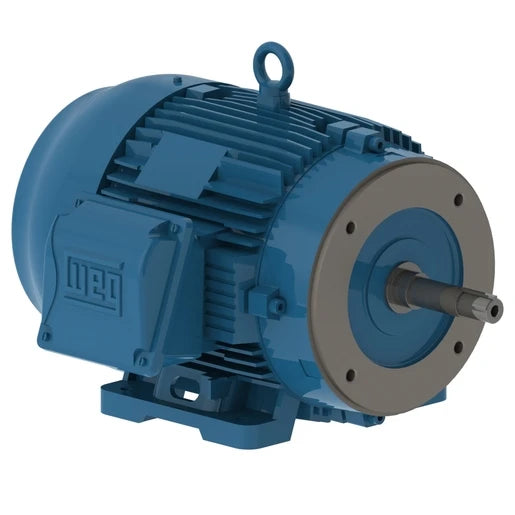

Weg Electric 12536ET3E444TSC-W22G, 125 Hp, 3600 Rpm, 444/5TSC Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 18909306

Weg Electric 12536ET3E444TSC-W22G, 125 Hp, 3600 Rpm, 444/5TSC Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 18909306

$15,580.34
$15,580.34
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 12536ET3E444TSC-W22G, 125 Hp, 3600 Rpm, 444/5TSC Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 18909306

SPECIFICATIONS

Frame 444/5TSC
Output 125 HP
Number of Poles 2
Frequency 60 Hz
Rated speed 3575 rpm
Slip 0.69 %
Rated voltage 230/460 V
Rated current 267/134 A
L. R. Amperes 1764/882 A
LRC 6.6x(Code G)
No load current 62.0/31.0 A
Rated torque 184 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 1599 lb
