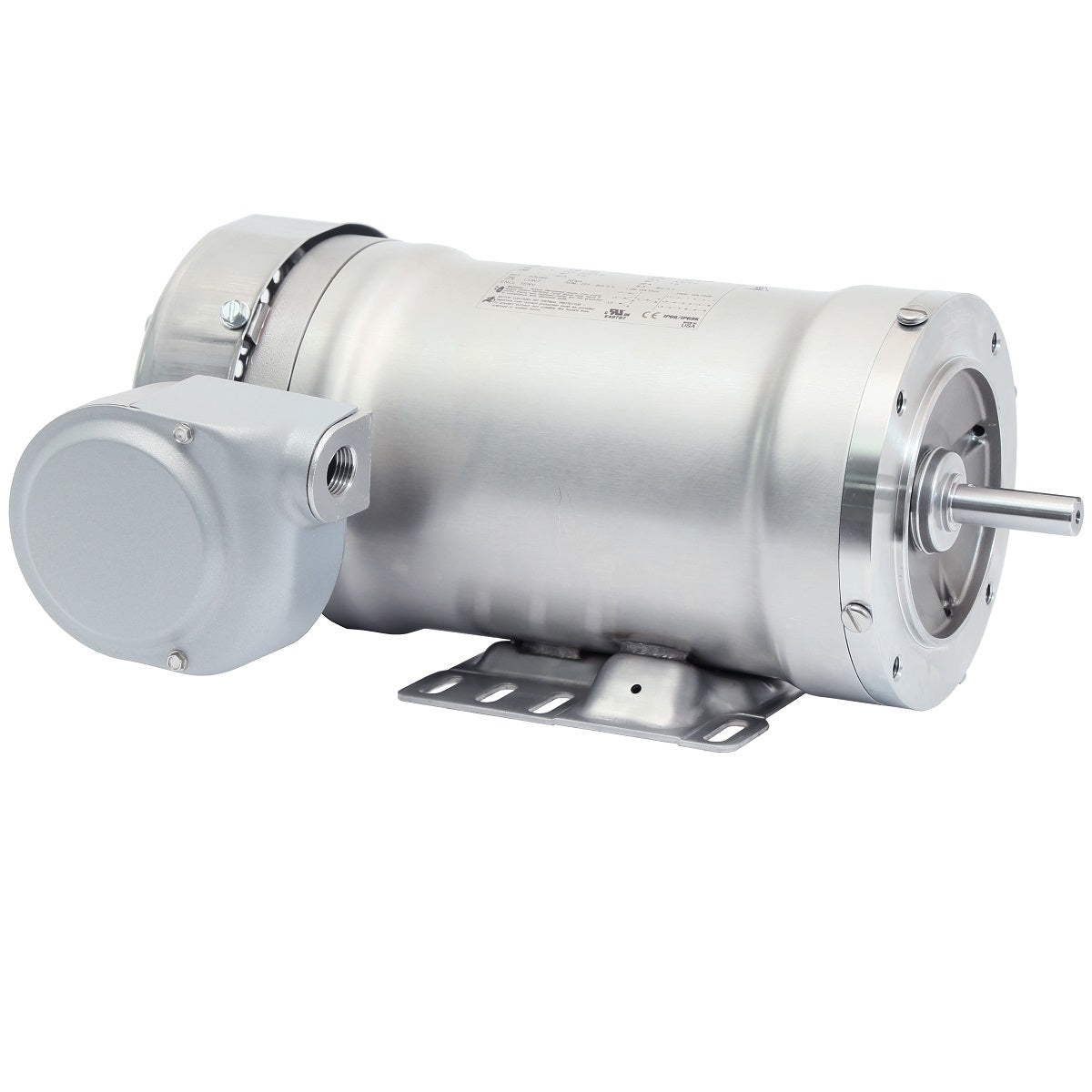

Weg Electric 1311017133, 1/2 Hp, 1200/1000 Rpm, 56C Frame, 230/460 Vac, TEFC, Foot-mounted, HydroDuty Standard Efficiency.

1311017133, 1/2 Hp, 1200/1000 Rpm, 56C Frame, 230/460 Vac, TEFC, Foot-mounted, HydroDuty Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frame 56C
Frequency 60/50 Hz
Number of poles 6
Degree of Protection IP69K
Synchronous speed 1200/1000 rpm
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP69K
Mounting F-1
Output rating 0.5 HP
Enclosure TEFC
Frequency 60/50 Hz
Flange C
Frame Material Stainless steel
Mounting Foot-mounted
Efficiency Standard Efficiency
Motor Application HydroDuty
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1200/1000 rpm
Number of Poles 6
