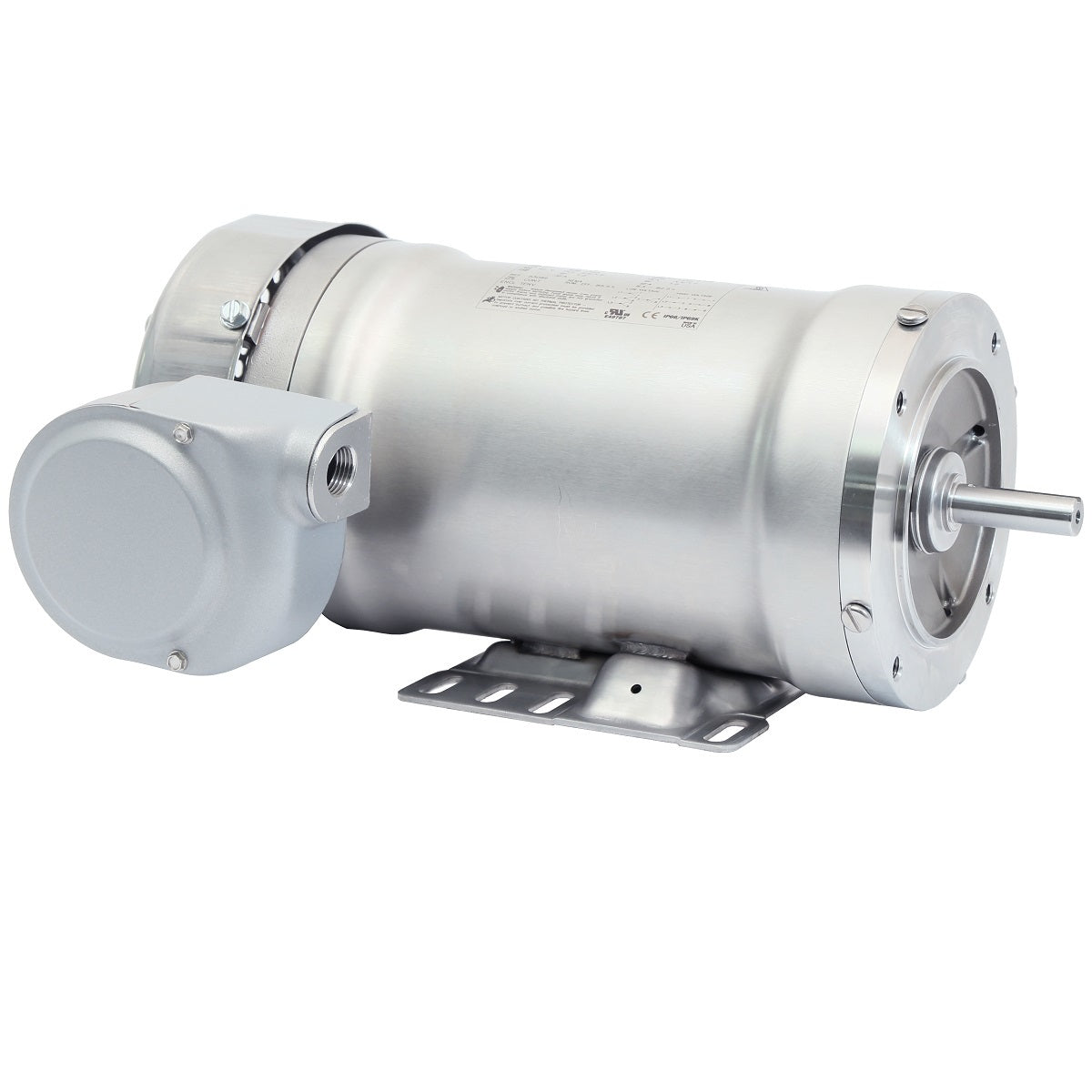

Weg Electric 1311017139, 1 Hp, 1200/1000 Rpm, 143TC Frame, 230/460 Vac, TEFC, Footless, HydroDuty NEMA Premium Efficiency.

1311017139, 1 Hp, 1200/1000 Rpm, 143TC Frame, 230/460 Vac, TEFC, Footless, HydroDuty NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frame 143TC
Frequency 60/50 Hz
Number of poles 6
Degree of Protection IP66
Synchronous speed 1200/1000 rpm
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP66
Mounting F-1
Output rating 1 HP
Enclosure TEFC
Frequency 60/50 Hz
Flange C
Frame Material Stainless steel
Mounting Footless
Efficiency NEMA Premium Efficiency
Motor Application HydroDuty
Terminal box¹ Left position
Frame 143TC
Voltage 230/460 V
Synchronous speed 1200/1000 rpm
Number of Poles 06
