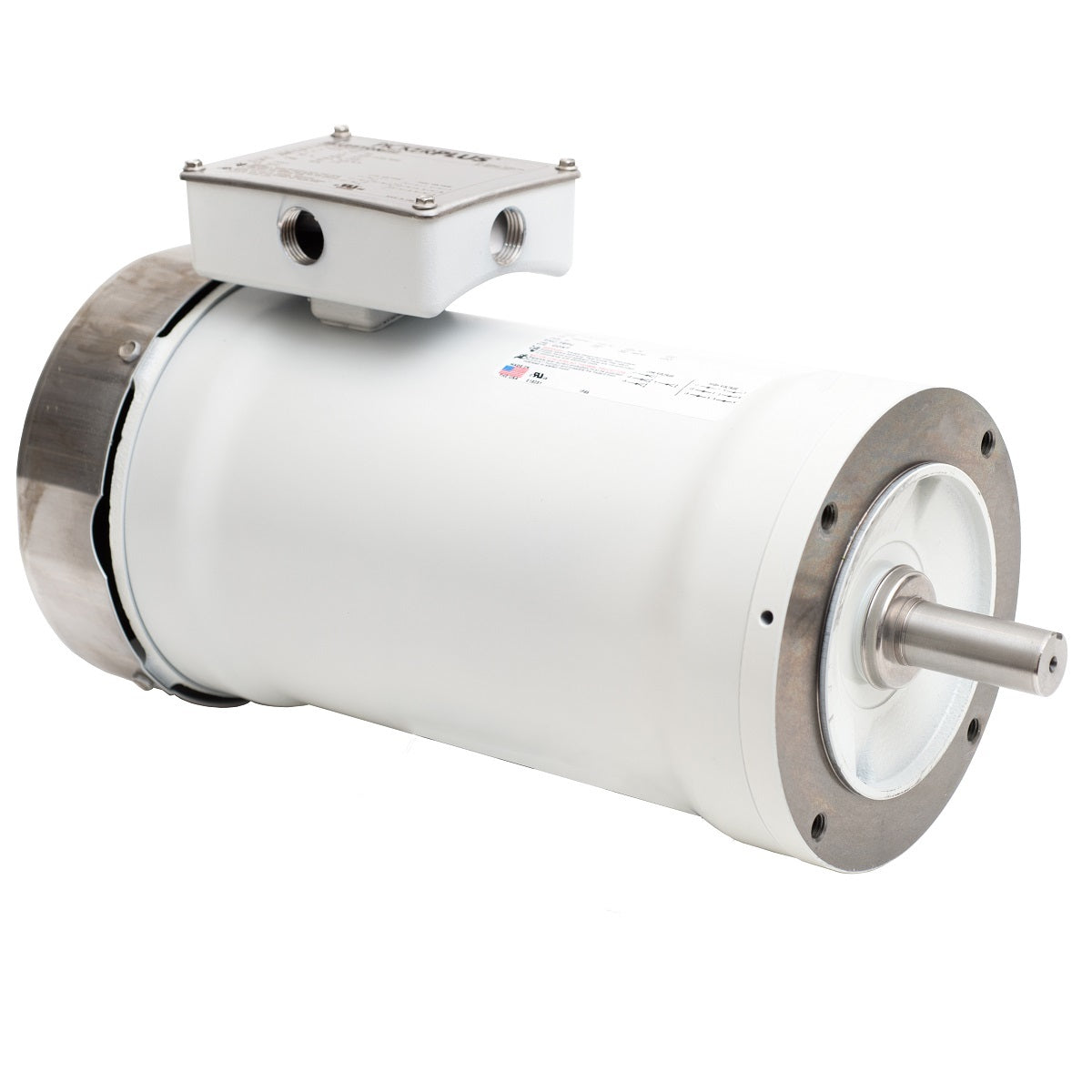

Weg Electric 1311017192, 3 Hp, 1800 Rpm, 145TC Frame, 230/460 Vac, TEFC, Foot-mounted, PickerPlus NEMA Premium Efficiency.

1311017192, 3 Hp, 1800 Rpm, 145TC Frame, 230/460 Vac, TEFC, Foot-mounted, PickerPlus NEMA Premium Efficiency.

Engineering Data

Encapsulated winding and a patented sealing system to ensure they will “standup” in the most severe applications.

Product features
Standard NEMA MG-1
Frame 145TC
Frequency 60 Hz
Number of poles 4
Degree of Protection IP66
Synchronous speed 1800 rpm
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP66
Mounting F-1
Output rating 3 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Rolled Steel
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Motor Application PickerPlus
Terminal box¹ Left position
Frame 145TC
Voltage 230/460 V
Synchronous speed 1800 rpm
Number of Poles 04
