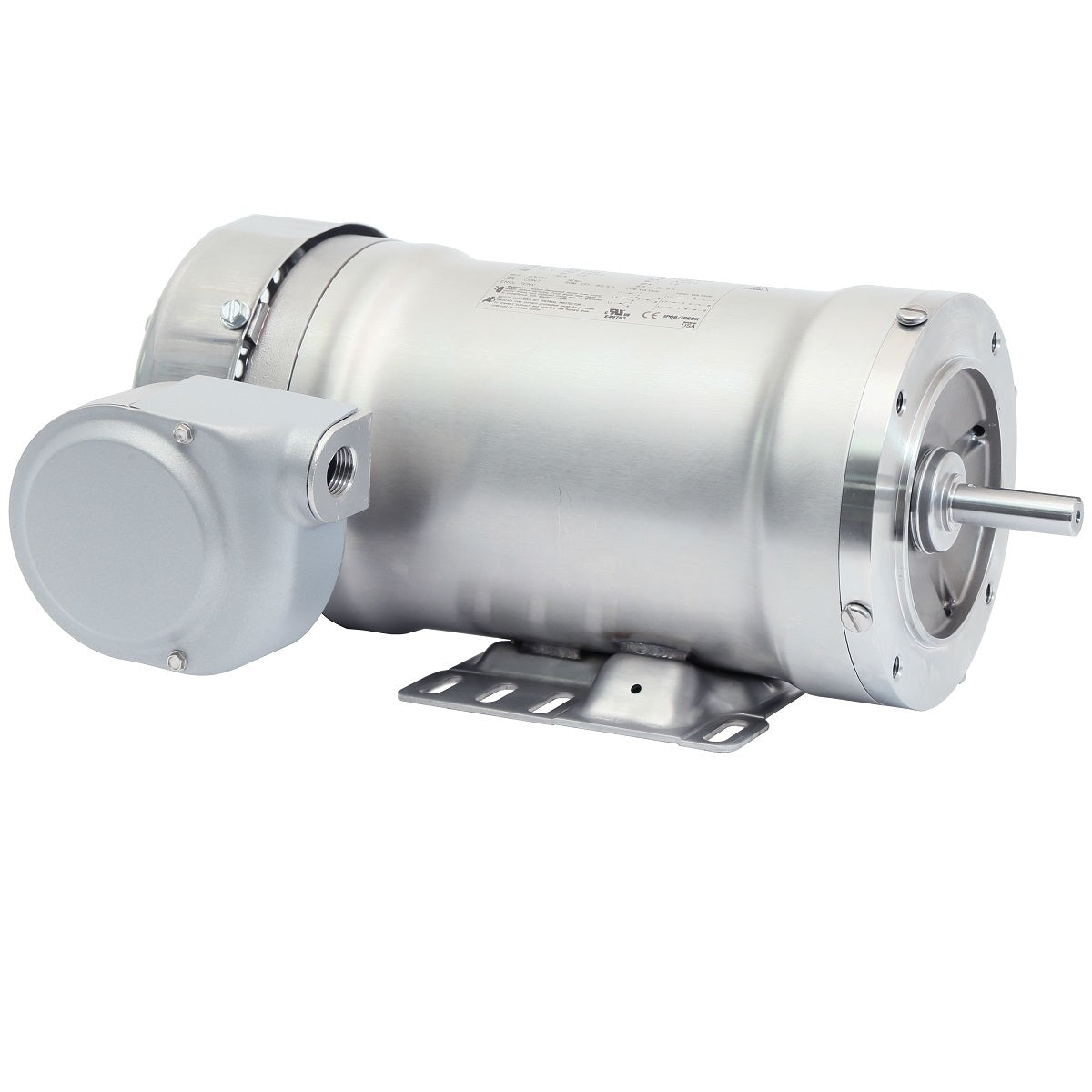

Weg Electric 1311087138, 1 Hp, 1200 Rpm, 56C Frame, 208-230/460 Vac, TEFC, Foot-mounted, Washdown NEMA Premium Efficiency.

1311087138, 1 Hp, 1200 Rpm, 56C Frame, 208-230/460 Vac, TEFC, Foot-mounted, Washdown NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frame 56C
Frequency 60 Hz
Number of poles 6
Degree of Protection IP69K
Synchronous speed 1200 rpm
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP69K
Mounting F-1
Output rating 1 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Motor Application WASHDOWN
Terminal box¹ Left position
Frame 56C
Voltage 208-230/460V
Synchronous speed 1200 rpm
Number of Poles 06
