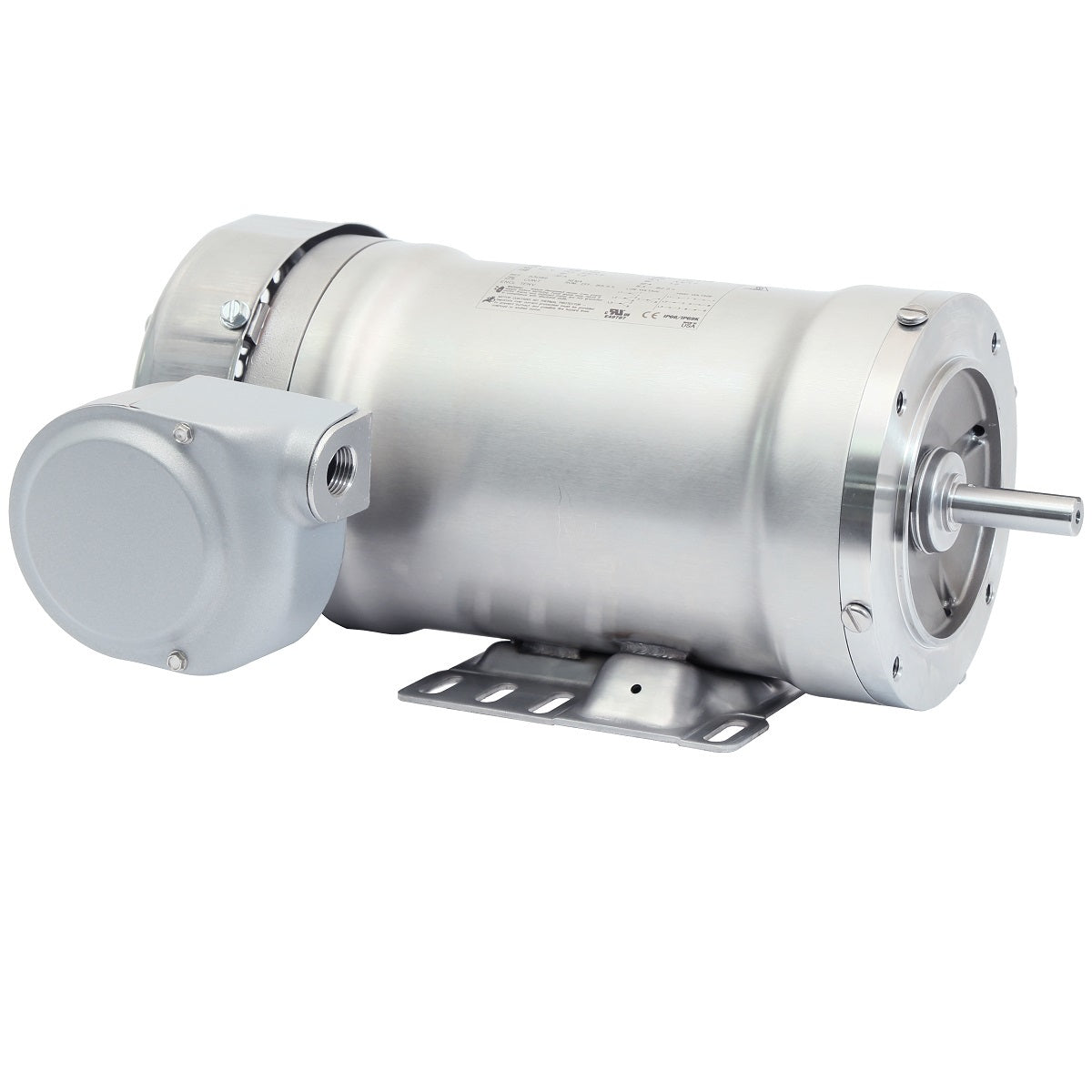

Weg Electric 1313017155, 1 1/2 Hp, 3600/3000 Rpm, 145TC Frame, 230/460 Vac, TEFC, Foot-mounted, HydroDuty NEMA Premium Efficiency.

1313017155, 1 1/2 Hp, 3600/3000 Rpm, 145TC Frame, 230/460 Vac, TEFC, Foot-mounted, HydroDuty NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frame 145TC
Frequency 60/50 Hz
Number of poles 2
Degree of Protection IP66
Synchronous speed 3600/3000 rpm
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP66
Mounting F-1
Output rating 1.5 HP
Enclosure TEFC
Frequency 60/50 Hz
Flange C
Frame Material Stainless steel
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Motor Application HydroDuty
Terminal box¹ Left position
Frame 145TC
Voltage 230/460 V
Synchronous speed 3600/3000 rpm
Number of Poles 02
