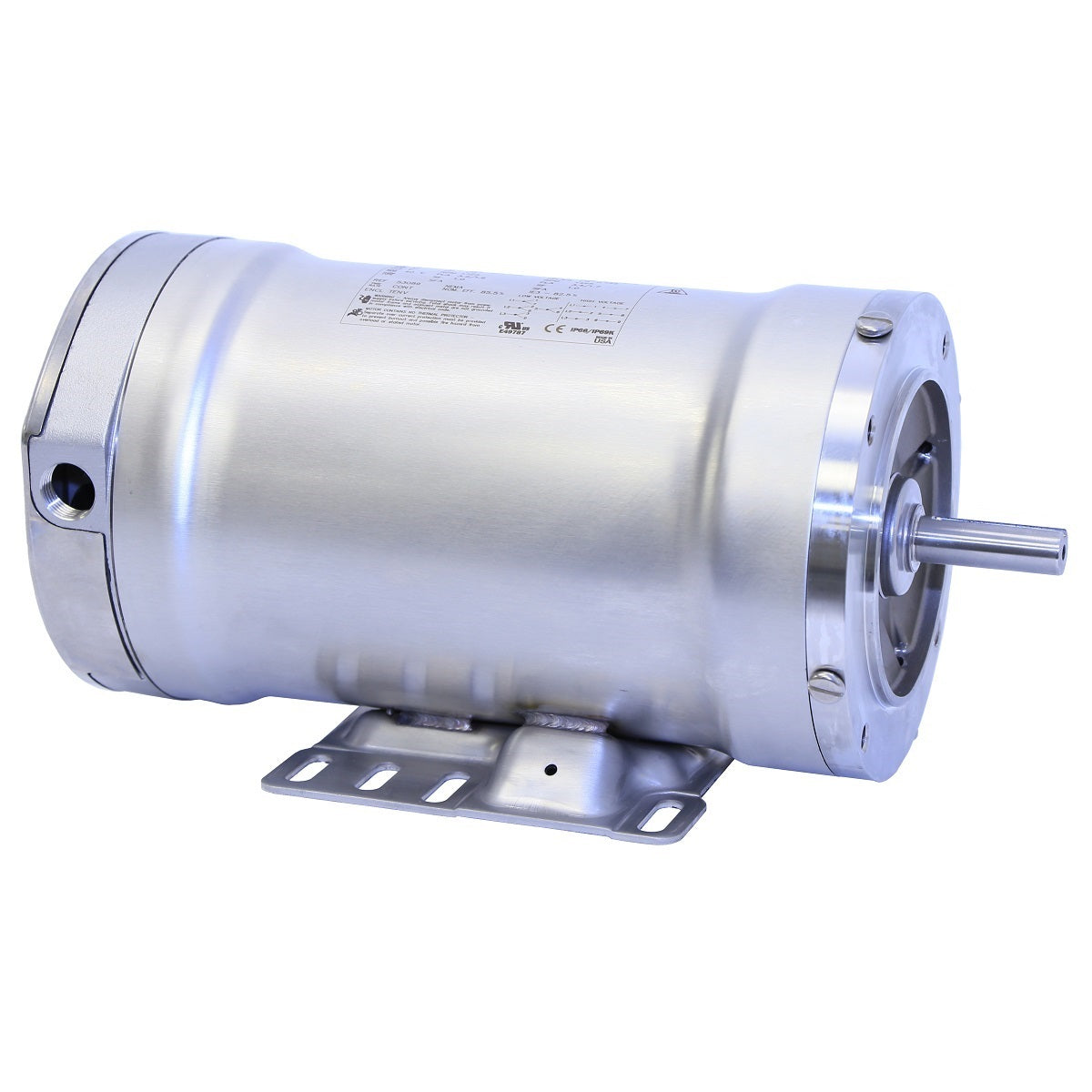

Weg Electric 1321087139, 1 Hp, 1800 Rpm, 56C Frame, 230/460 Vac, TENV, Foot-mounted, Washdown NEMA Premium Efficiency.

1321087139, 1 Hp, 1800 Rpm, 56C Frame, 230/460 Vac, TENV, Foot-mounted, Washdown NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frame 56C
Frequency 60 Hz
Number of poles 4
Degree of Protection IP69K
Synchronous speed 1800 rpm
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TENV

Standard NEMA MG-1
Degree of Protection IP69K
Mounting F-1
Output rating 1 HP
Enclosure TENV
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Motor Application WASHDOWN
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1800 rpm
Number of Poles 04
