Industrial Motors

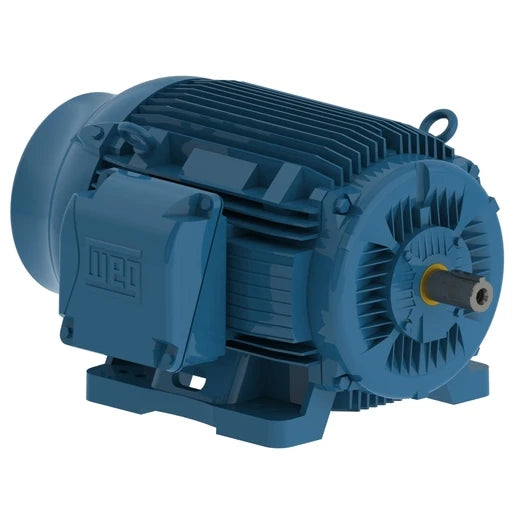

Weg Electric 15018ST3QIE445TS-W22, 150 Hp, 1800 Rpm, 44/5TS Frame, 460 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 12693285

Weg Electric 15018ST3QIE445TS-W22, 150 Hp, 1800 Rpm, 44/5TS Frame, 460 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 12693285

$16,542.43
$16,542.43
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 15018ST3QIE445TS-W22, 150 Hp, 1800 Rpm, 44/5TS Frame, 460 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 12693285

SPECIFICATIONS

Manufacturer Part Number 15018ST3QIE445TS-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 150HP 4P 444/5TS WFF2
Type Severe Duty
Horsepower 152 hp
Kilowatts 111.9 kW
Speed 1,800 RPM
Number of Poles 4
Phase 3
Frequency 60 Hz
NEMA Frame 444/5TS
AC Voltage 460 VAC
Nominal Voltage 480 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 170 A
Service Factor 1.15
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Bearing Type Ball
Shaft Diameter 2.38 "
Overload Protection None
Length 41 "
Approvals cCSAus, cULus
Net Weight 1899.025 lbs
Gross Weight 1899.025 lbs
View full details

Attachments
