Industrial Motors

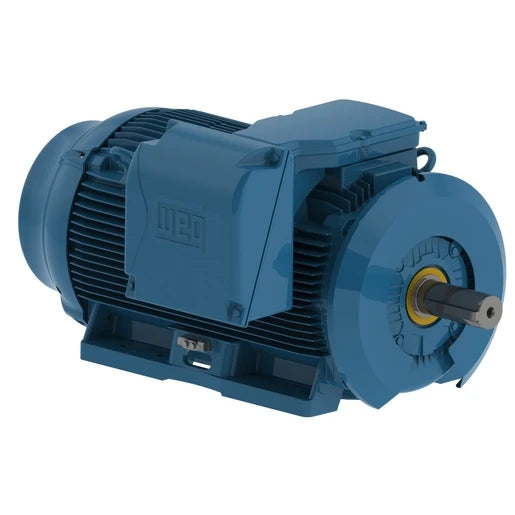

Weg Electric 20009ST3HIE449T-W22, 200 Hp, L447/9T Frame, 900 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency, 12970107

Weg Electric 20009ST3HIE449T-W22, 200 Hp, L447/9T Frame, 900 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency, 12970107

$51,080.66
$51,080.66
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 20009ST3HIE449T-W22, 200 Hp, L447/9T Frame, 900 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency, 12970107

SPECIFICATIONS

Manufacturer Part Number 20009ST3HIE449T-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 200HP 4P 364/5T WFF2
Type Induction Motor
Horsepower 60 hp
Kilowatts 44.7 kW
Speed 900 RPM
Number of Poles 4
Phase 3
Frequency 60 Hz
NEMA Frame L447/9T
AC Voltage 575 VAC
Nominal Voltage 480 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 68.3 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Shaft Diameter 2.38 "
Overload Protection None
Length 34.41 "
Approvals cCSAus, cULus
Net Weight 1665.853 lbs
Gross Weight 1665.853 lbs
