Industrial Motors

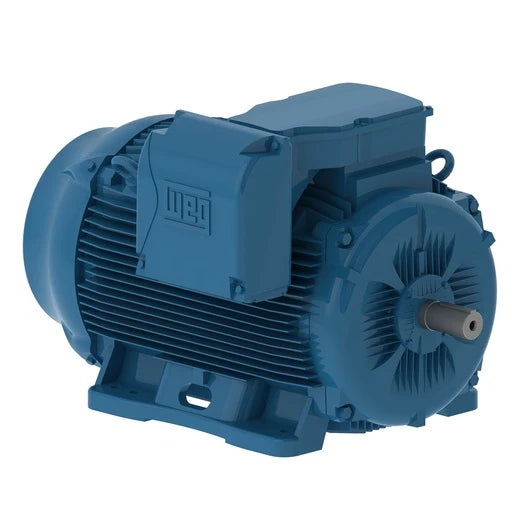

Weg Electric 20018ST3HIERB447T-W2, 200 Hp, 1800 Rpm, 445/7T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 15460791

Weg Electric 20018ST3HIERB447T-W2, 200 Hp, 1800 Rpm, 445/7T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 15460791

$21,089.44
$21,089.44
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 20018ST3HIERB447T-W2, 200 Hp, 1800 Rpm, 445/7T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 15460791

SPECIFICATIONS

Manufacturer Part Number 20018ST3HIERB447T-W2
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 200HP 4P 445/7T WFF2
Type Severe Duty
Horsepower 200 hp
Kilowatts 149.1 kW
Speed 1,800 RPM
Number of Poles 4
Phase 3
Frequency 60 Hz
NEMA Frame 445/7T
AC Voltage 575 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 184 A
Service Factor 1.15
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Bearing Type Ball
Shaft Diameter 3.38 "
Overload Protection None
Length 49 "
Approvals cCSAus, cULus
Net Weight 2410.582 lbs
Gross Weight 2410.582 lbs
