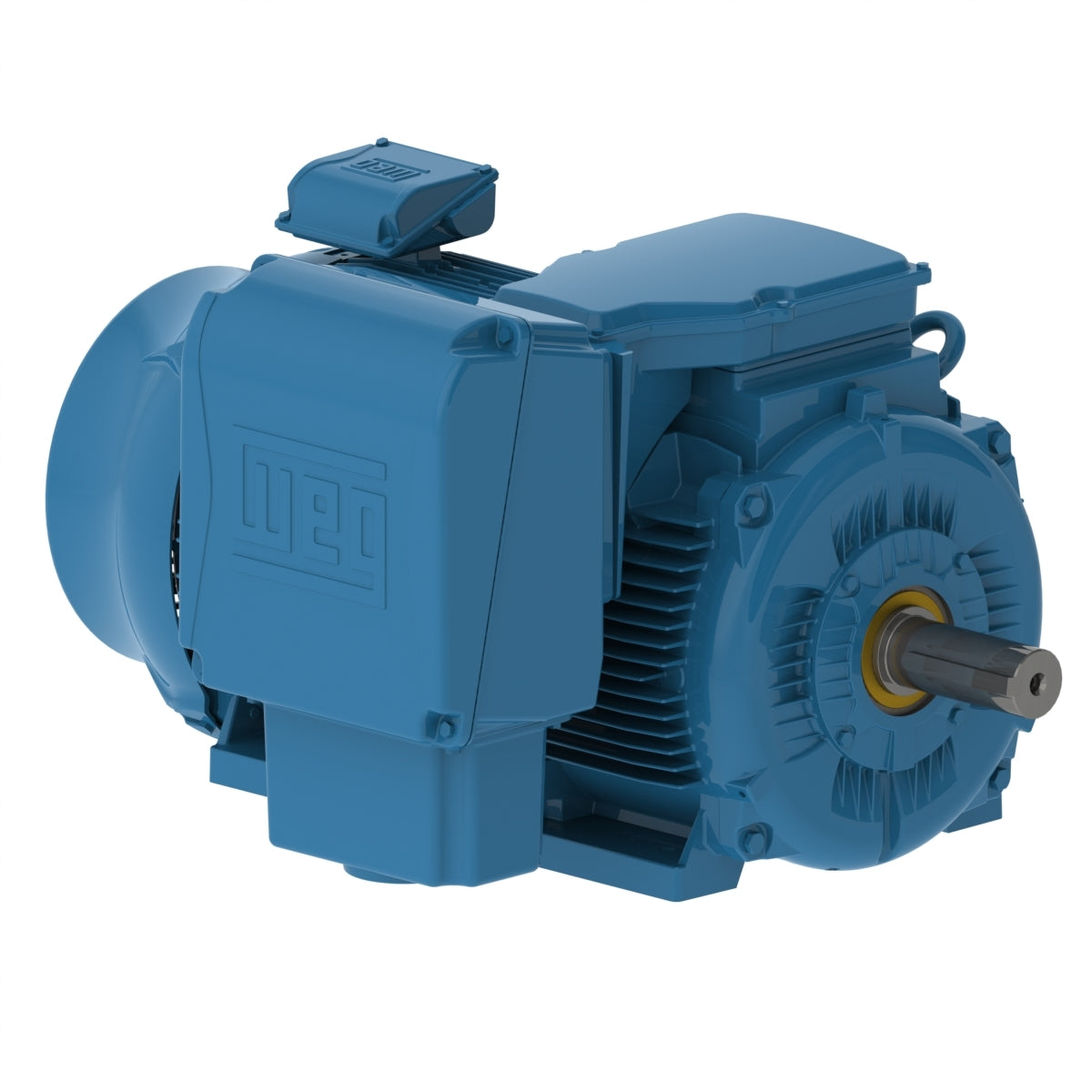

Weg Electric 20036ET3XL449-W22MV, 200 Hp, L447/9TS Frame, 3600 RPM, 2300/4160 Vac, TEFC, 3 PH, Foot-mounted, W22Xec Medium Voltage

20036ET3XL449-W22MV, 200 Hp, L447/9TS Frame, 3600 RPM, 2300/4160 Vac, TEFC, 3 PH, Foot-mounted, W22Xec Medium Voltage

Engineering Data

Note: This item can be derated to 50HP less than the rated power. Please contact Inside Sales for more information.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 2300/4160 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 200 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame L447/9TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3580 rpm
Slip 0.56 %
Rated voltage 2300 V
Rated current 47.1 A
L. R. Amperes 410 A
LRC 8.7x(Code K)
No load current 19.0 A
Rated torque 293 ft.lb
Locked rotor torque 180 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 88.0 dB(A)
