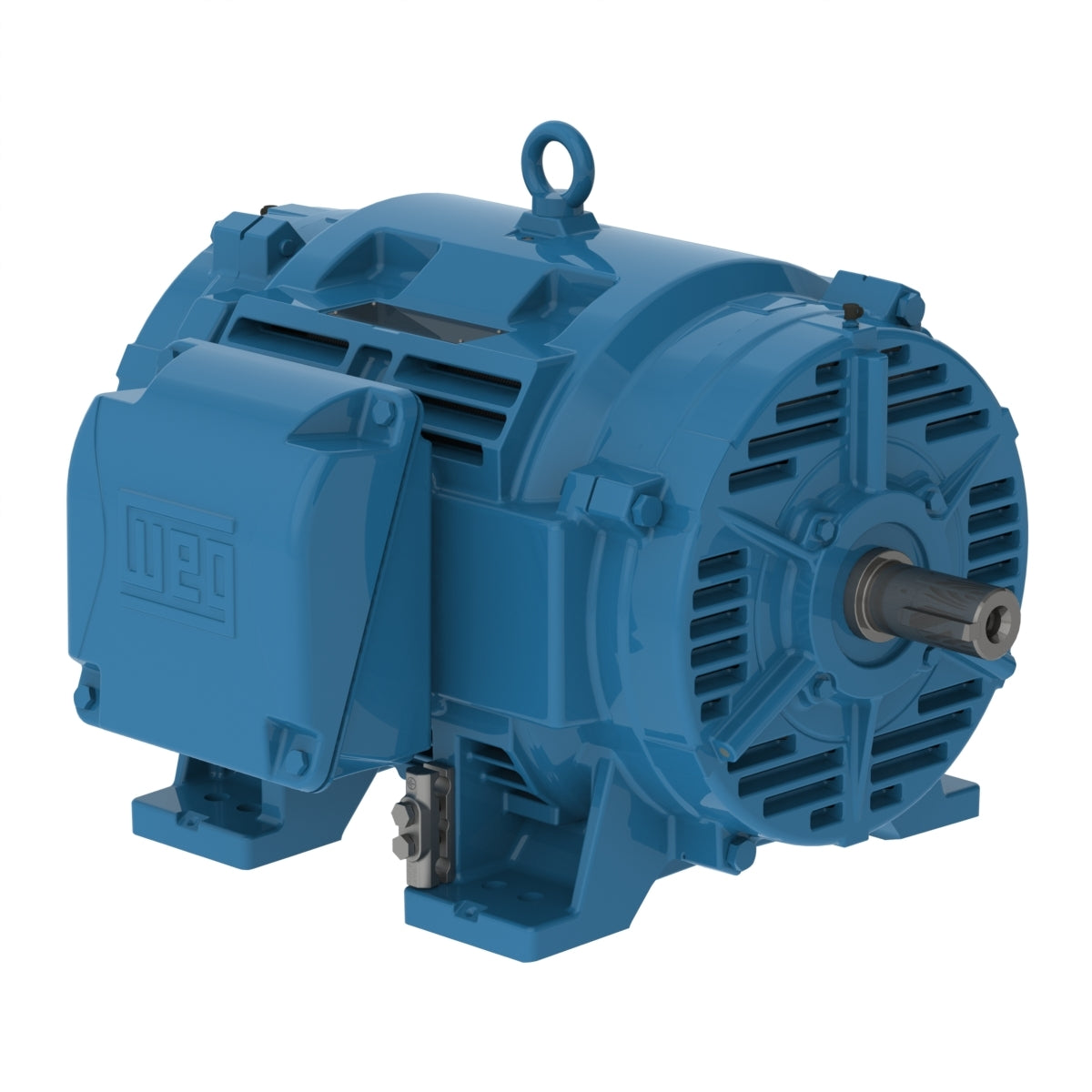

Weg Electric 20036OT3G444TS-RFVFD, 200 Hp, 3600 Rpm, 444/5TS Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

20036OT3G444TS-RFVFD, 200 Hp, 3600 Rpm, 444/5TS Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 460//380 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 200 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP
