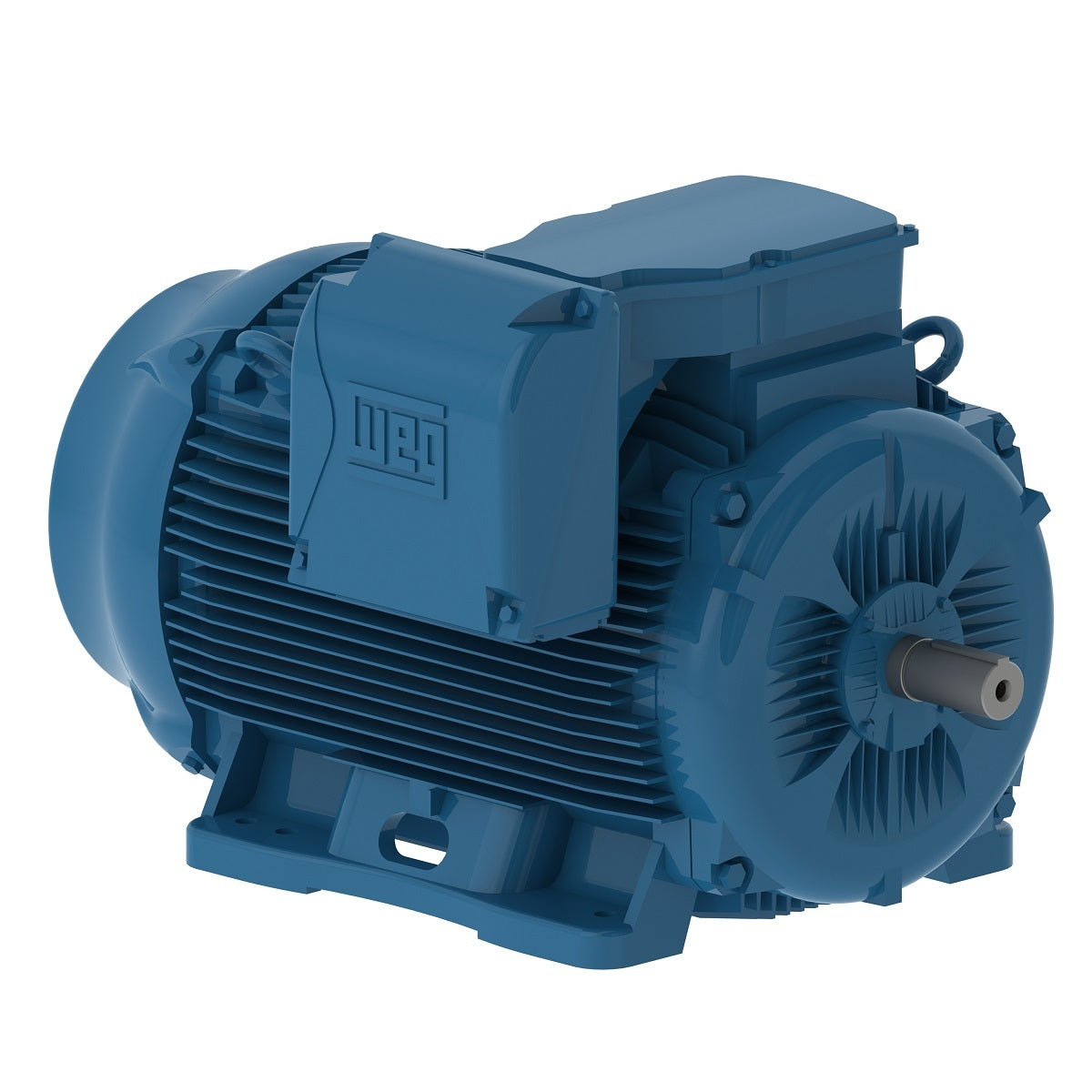

Weg Electric 20036ST3HIE447TS-W22, 200 Hp, 445/7TS Frame, 3600 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEE 841 NEMA Premium Efficiency.

20036ST3HIE447TS-W22, 200 Hp, 445/7TS Frame, 3600 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEE 841 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 200 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 445/7TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3570 rpm
Slip 0.83 %
Rated voltage 575 V
Rated current 175 A
L. R. Amperes 1139 A
LRC 6.5x(Code G)
No load current 36.0 A
Rated torque 294 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 44.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
