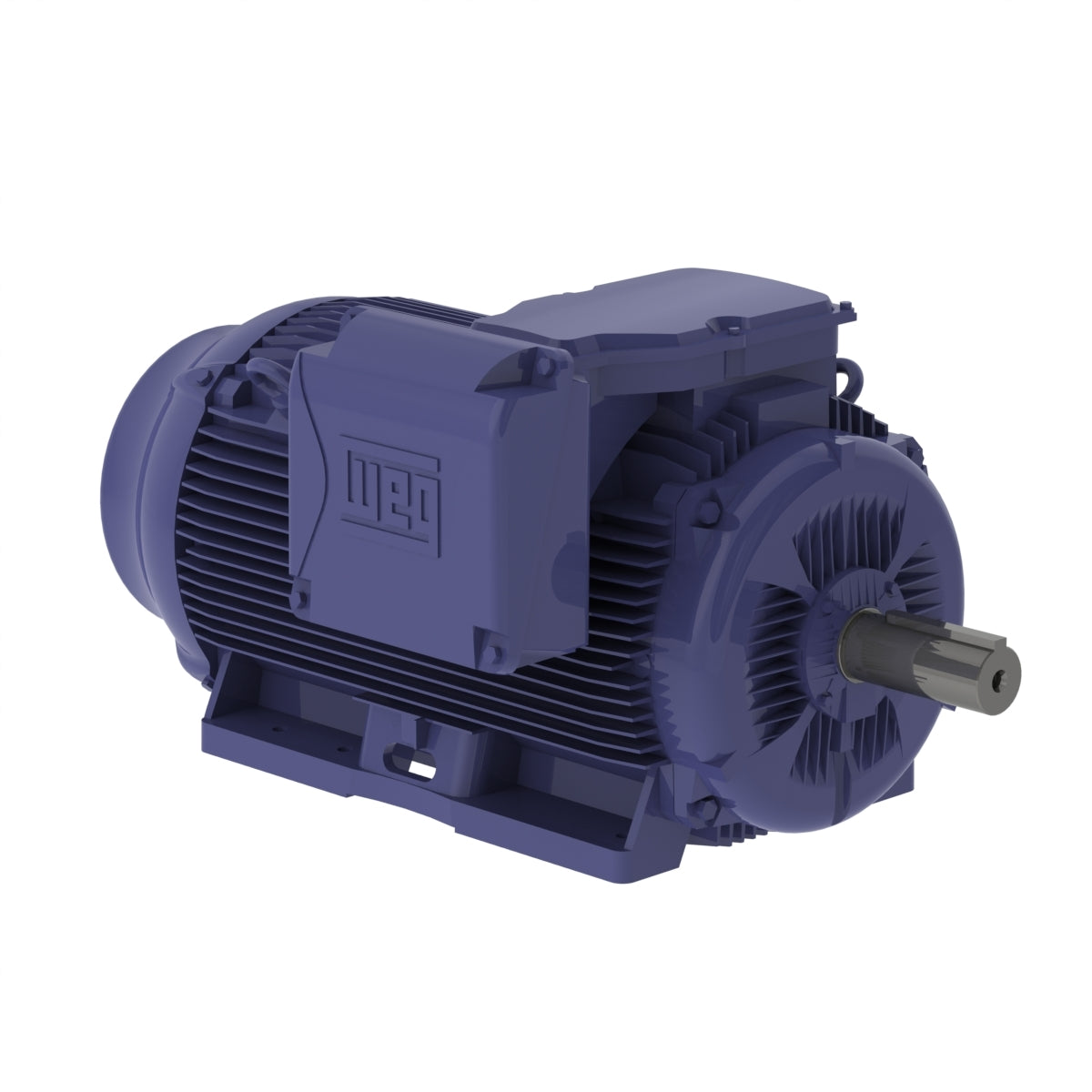

Weg Electric 25015EP3OFP449TS-W22, 250 Hp, 447/9T Frame, 1500 RPM, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

25015EP3OFP449TS-W22, 250 Hp, 447/9T Frame, 1500 RPM, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 50 Hz
Voltage 380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1500 rpm
Output rating 250 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 447/9TS
Output 250 HP (185 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 339 A
L. R. Amperes 1865 A
LRC 5.5x(Code E)
No load current 91.0 A
Rated torque 890 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 46s (cold) 26s (hot)
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
