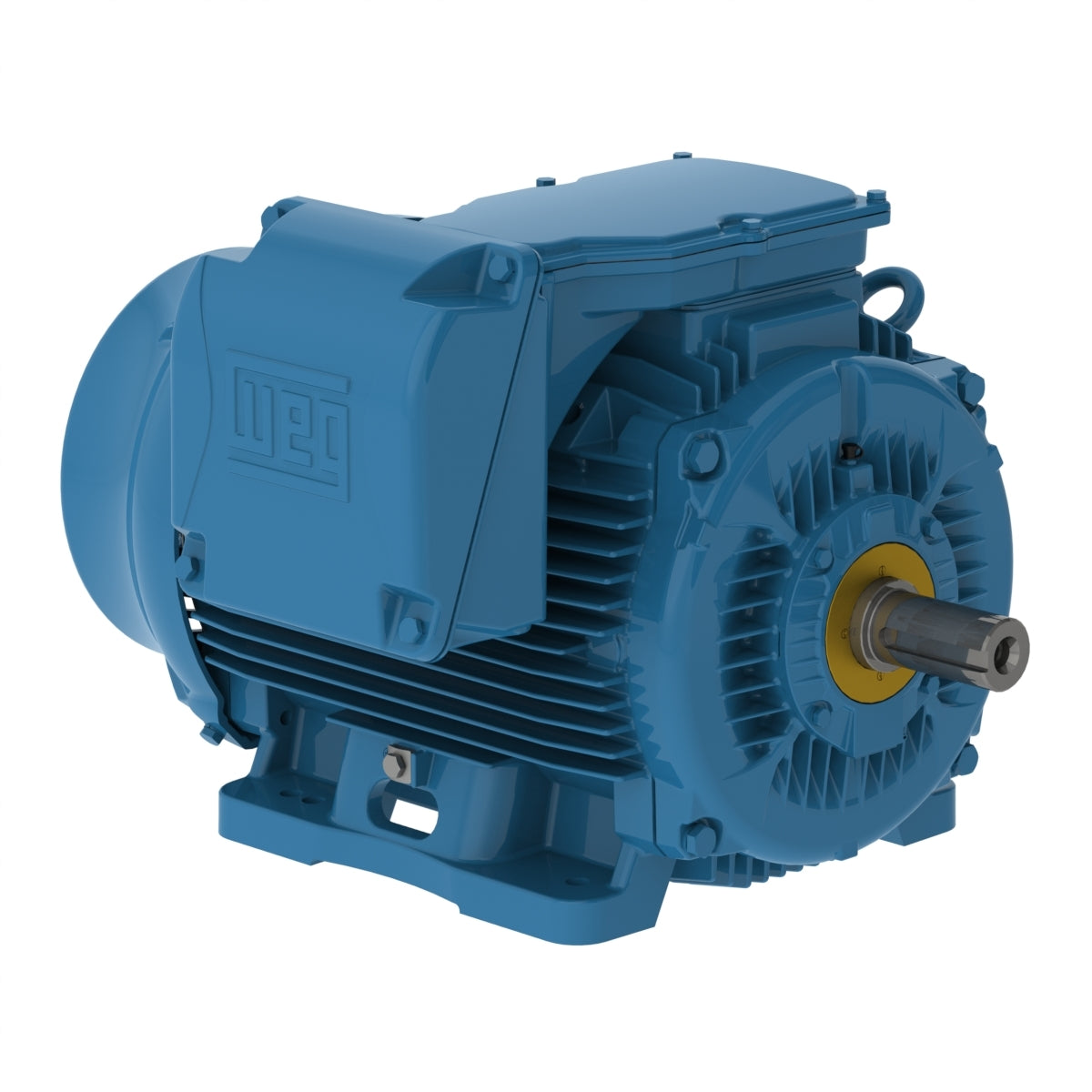

Weg Electric 25018ET3GKD505Z-W22, 250 Hp, 1800 Rpm, 504/5TZ Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

25018ET3GKD505Z-W22, 250 Hp, 1800 Rpm, 504/5TZ Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

Designed to meet the demanding requirements of the rock crushing industry, the Crusher Duty motor comes standard with 4140 high strength shafts and heavy duty roller bearings. This motor complies or exceeds EISA 2016 requlations. Compliment your WEG Crusher Duty motor with our TPH2 Starter to complete your solution!

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 250 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 504/5TZ
Output 250 HP (185 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1790 rpm
Slip 0.56 %
Rated voltage 460 V
Rated current 284 A
L. R. Amperes 2244 A
LRC 7.9x(Code J)
No load current 110 A
Rated torque 733 ft.lb
Locked rotor torque 250 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Design A
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
