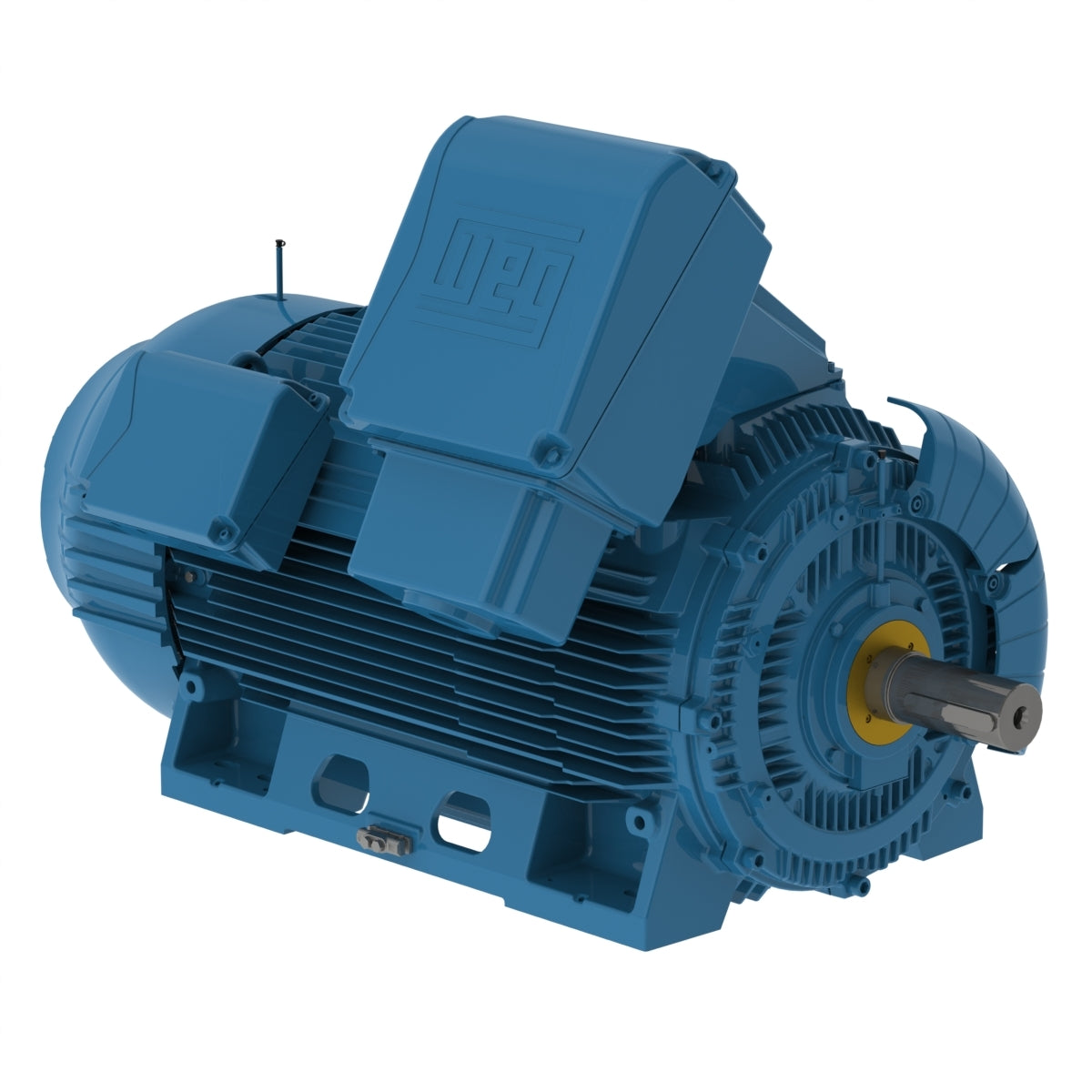

Weg Electric 25018ET3X5009-W50MV, 250 Hp, 1800 Rpm, 5009/10 Frame, 2300/4160 Vac, TEFC, 3 PH, Foot-mounted.

25018ET3X5009-W50MV, 250 Hp, 1800 Rpm, 5009/10 Frame, 2300/4160 Vac, TEFC, 3 PH, Foot-mounted.

Engineering Data

WEG W50 motors offer not only excellent performance, but comply with the strictest efficiency and safety criteria in the most severe applications. The compact design provides high performance, while their robust frames ensure low vibration levels. The new mechanical concept not only optimizes characteristics like mass and length, but also offers product versatility and reduced maintenance.

Note: This item can be derated to 50HP less than the rated power. Please contact Inside Sales for more information.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 2300/4160 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 250 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 5009/10
Output 250 HP (185 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1783 rpm
Slip 0.94 %
Rated voltage 2300 V
Rated current 58.2 A
L. R. Amperes 361 A
LRC 6.2x(Code G)
No load current 19.0 A
Rated torque 736 ft.lb
Locked rotor torque 140 %
Breakdown torque 220 %
Locked rotor time 36s (cold) 20s (hot)
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
