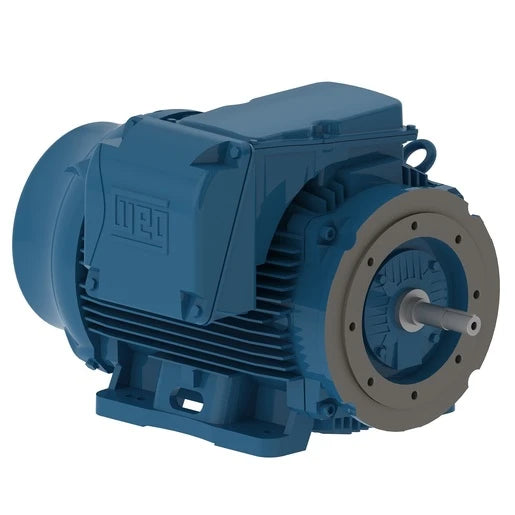

Weg Electric 25036ET3H447TSC-W22, 250 Hp, 3600 Rpm, 445/7TSC Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 14285122

Weg Electric 25036ET3H447TSC-W22, 250 Hp, 3600 Rpm, 445/7TSC Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 14285122

$27,102.28
$27,102.28
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 25036ET3H447TSC-W22, 250 Hp, 3600 Rpm, 445/7TSC Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 14285122

SPECIFICATIONS

Frame 445/7TSC
Output 250 HP (185 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3573 rpm
Slip 0.75 %
Rated voltage 575 V
Rated current 215 A
L. R. Amperes 1442 A
LRC 6.7x(Code G)
No load current 48.0 A
Rated torque 367 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 50.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
Approx. weight³ 2331 lb
