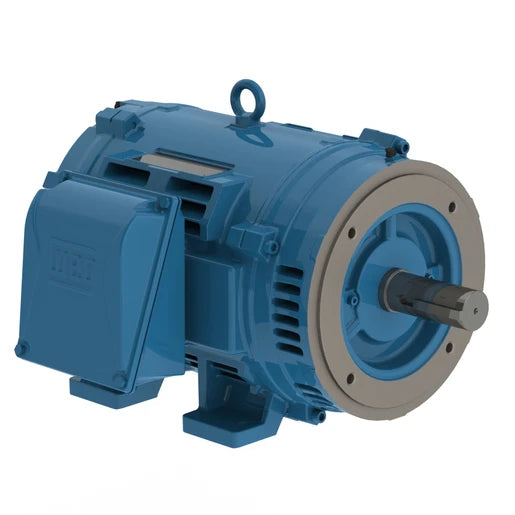

Weg Electric 25036OT3G445TSC-W40, 250 Hp, 3600 Rpm, 444/5TSC Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14272871

Weg Electric 25036OT3G445TSC-W40, 250 Hp, 3600 Rpm, 444/5TSC Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14272871

$17,393.27
$17,393.27
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 25036OT3G445TSC-W40, 250 Hp, 3600 Rpm, 444/5TSC Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14272871

SPECIFICATIONS

Frame 444/5TSC
Output 250 HP (185 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 278 A
L. R. Amperes 1861 A
LRC 6.7x(Code G)
No load current 72.0 A
Rated torque 368 ft.lb
Locked rotor torque 150 %
Breakdown torque 229 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 26.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 85.0 dB(A)
Approx. weight³ 1427 lb
