Industrial Motors

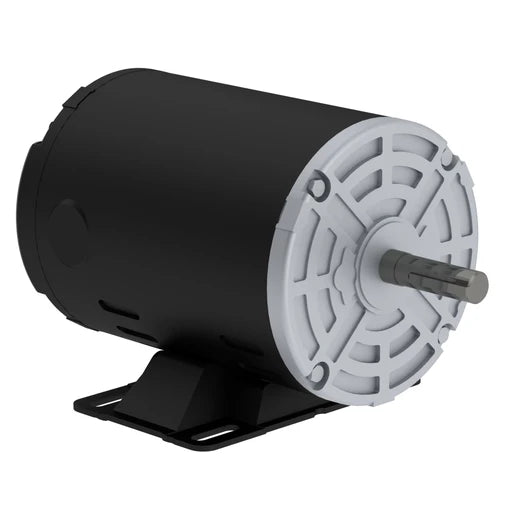

Weg Electric .2518OS1BSPO48-S, 0.25 Hp, 1800 Rpm, 48 FR, 115/208-230 Vac, 1 PH, ODP, Foot-Mounted, 14275153

Weg Electric .2518OS1BSPO48-S, 0.25 Hp, 1800 Rpm, 48 FR, 115/208-230 Vac, 1 PH, ODP, Foot-Mounted, 14275153

$195.80
$195.80
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .2518OS1BSPO48-S, 0.25 Hp, 1800 Rpm, 48 FR, 115/208-230 Vac, 1 PH, ODP, Foot-Mounted, 14275153

Specifications

Manufacturer Part Number .2518OS1BSPO48-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 0.25HP 4P 48 WCA2 RO S SI PH
Type Split Phase
Horsepower 1/4 hp
Kilowatts 0.19 kW
Speed 1,800 RPM
Number of Poles 4
Phase 1
Frequency 60 Hz
NEMA Frame 48
AC Voltage 115 VAC, 208-230 VAC
Nominal Voltage 120 VAC, 208 VAC, 240 VAC
Enclosure Open Drip Proof
Mounting Foot Mount
Current Rating 2.12 A
Service Factor 1.25
Inverter Duty No
Motor Type Split Phase
Composition Rolled Steel
Bearing Type Ball
Shaft Diameter 0.5 "
Overload Protection Automatic
Length 10.16 "
Approvals cCSAus
Net Weight 13.911 lbs
Gross Weight 13.911 lbs
