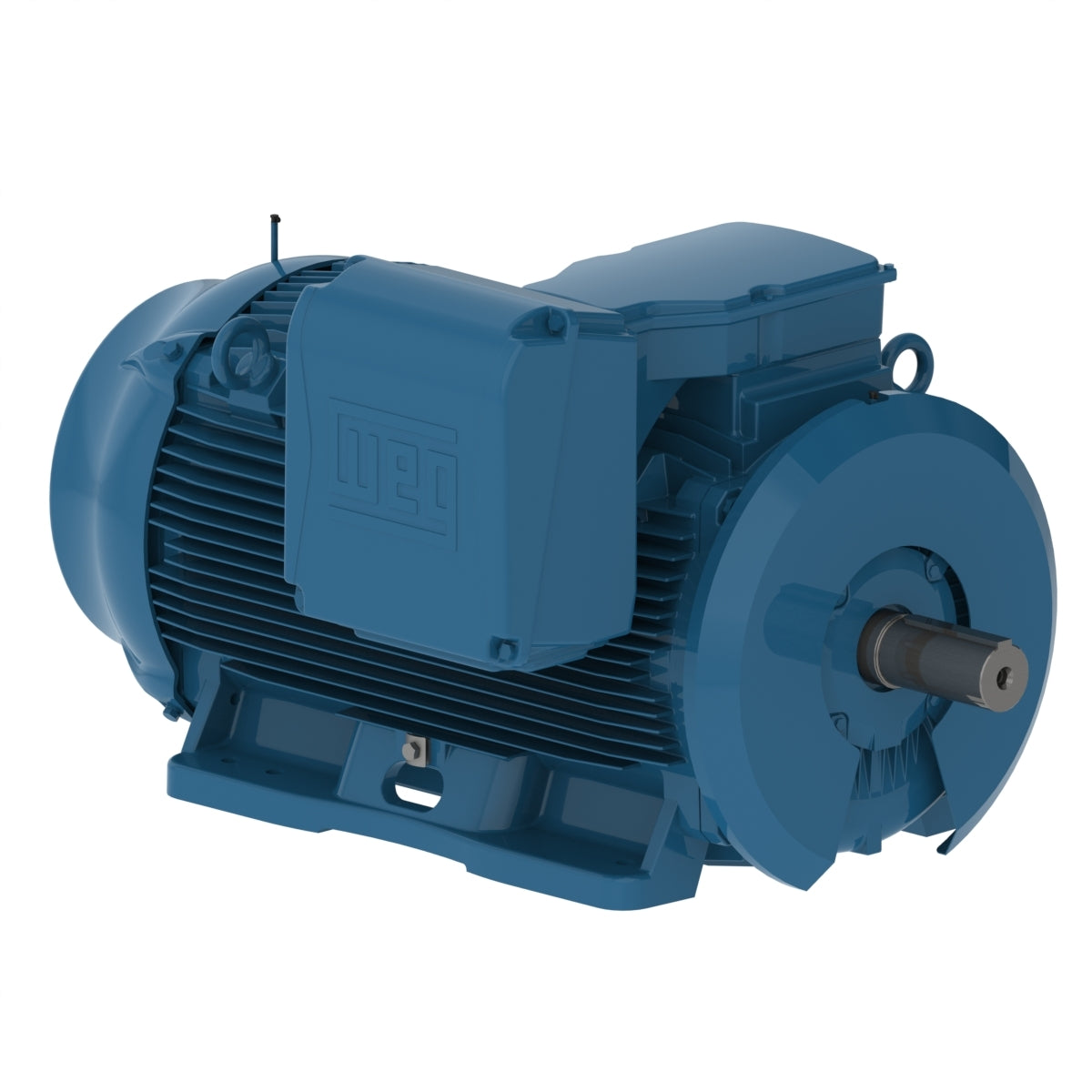

Weg Electric 30018ET3H449T-W22, 300 Hp, 1800 Rpm, 447/9T Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

30018ET3H449T-W22, 300 Hp, 1800 Rpm, 447/9T Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 300 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 447/9T
Output 300 HP (220 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 575 V
Rated current 264 A
L. R. Amperes 1716 A
LRC 6.5x(Code G)
No load current 84.0 A
Rated torque 885 ft.lb
Locked rotor torque 250 %
Breakdown torque 250 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 89.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
