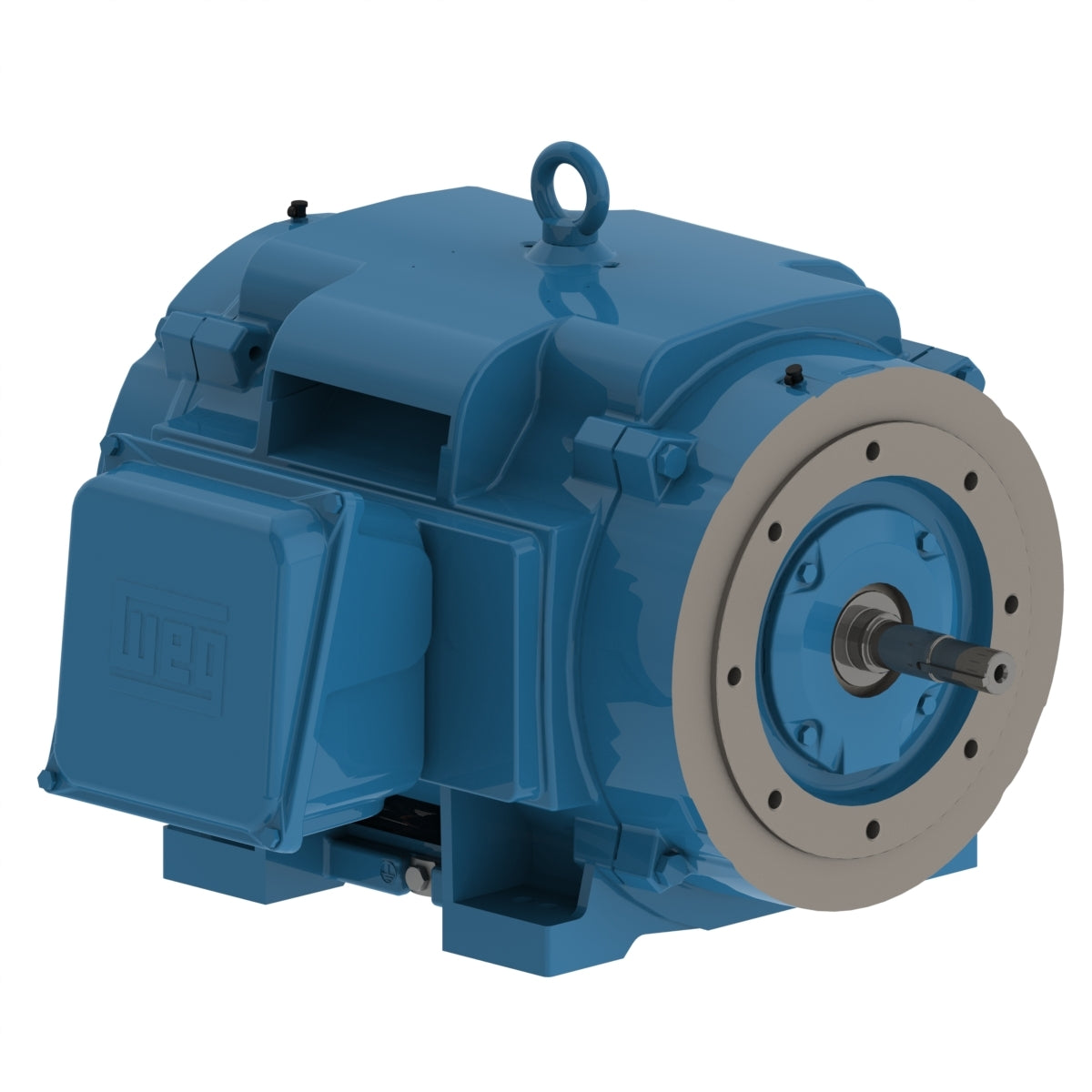

Weg Electric 30036OT3G445TSC-RF, 300 Hp, 444/5TSC Frame, 3600 RPM, 460 Vac, ODP, 3 PH, Foot-mounted, ODP NEMA Premium Efficiency.

30036OT3G445TSC-RF, 300 Hp, 444/5TSC Frame, 3600 RPM, 460 Vac, ODP, 3 PH, Foot-mounted, ODP NEMA Premium Efficiency.

Engineering Data

Cast iron frame IP23 motor complying with levels according to NEMA MG-1.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 300 HP
Mounting Foot-mounted
Flange Special
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 444/5TSC
Output 300 HP (220 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 322 A
L. R. Amperes 2029 A
LRC 6.3x(Code F)
No load current 81.0 A
Rated torque 442 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 33.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 89.0 dB(A)
