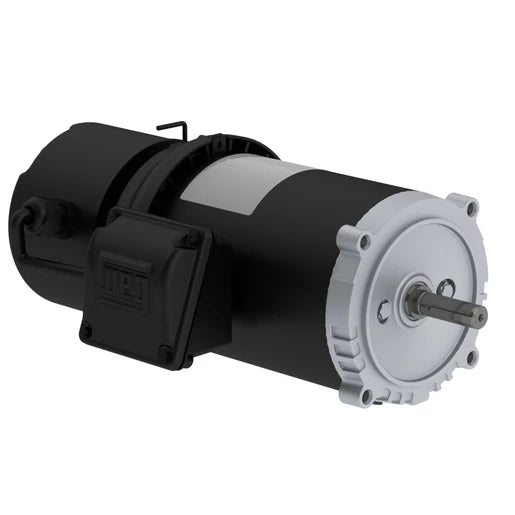

Weg Electric .3318ES3EBMW56CFL-S, 0.33 HP, W56C FR, 3Ph, 208-230/460//190-220/380-415 V, 60 Hz, 1800 RPM, TEFC, Footless, ROLLED STEEL, 14593682

Weg Electric .3318ES3EBMW56CFL-S, 0.33 HP, W56C FR, 3Ph, 208-230/460//190-220/380-415 V, 60 Hz, 1800 RPM, TEFC, Footless, ROLLED STEEL, 14593682

$903.35
$903.35
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .3318ES3EBMW56CFL-S, 0.33 HP, W56C FR, 3Ph, 208-230/460//190-220/380-415 V, 60 Hz, 1800 RPM, TEFC, Footless, ROLLED STEEL, 14593682

SPECIFICATIONS

Frame W56C
Output 0.33 HP (0.25 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 208-230/460 V
Rated current 1.46-1.32/0.659 A
L. R. Amperes 7.88-7.12/3.56 A
LRC 5.4x(Code K)
No load current 0.919-1.07/0.533 A
Rated torque 1.00 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.0318 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 23.2 lb
