Industrial Motors

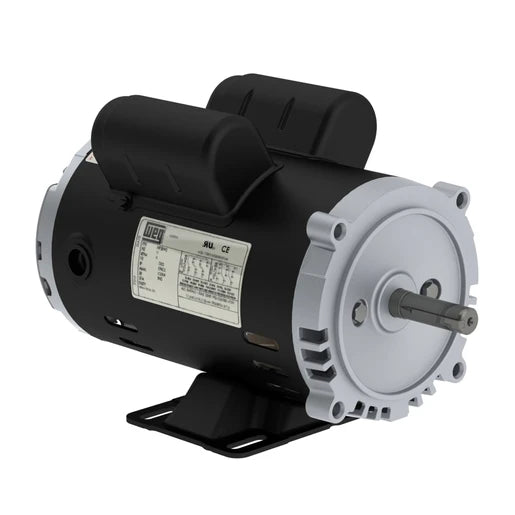

Weg Electric .3318OT1BOW56C-S, 0.33 Hp, 1800 Rpm, W56C FR, 115/208-230 Vac, 1 PH, ODP, Foot-Mounted, 15700922

Weg Electric .3318OT1BOW56C-S, 0.33 Hp, 1800 Rpm, W56C FR, 115/208-230 Vac, 1 PH, ODP, Foot-Mounted, 15700922

$268.78
$268.78
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .3318OT1BOW56C-S, 0.33 Hp, 1800 Rpm, W56C FR, 115/208-230 Vac, 1 PH, ODP, Foot-Mounted, 15700922

Specifications

Manufacturer Part Number .3318OT1BOW56C-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 0.33HP 4P W56C WCA2 RO S SI PH
Type Oil Well Pump
Horsepower 1/3 hp
Kilowatts 0.25 kW
Speed 1,800 RPM
Number of Poles 4
Phase 1
Frequency 60 Hz
NEMA Frame W56C
AC Voltage 115 VAC, 208-230 VAC
Nominal Voltage 120 VAC, 208 VAC, 240 VAC
Enclosure Open Drip Proof
Mounting Foot Mount
Current Rating 2.06 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Rolled Steel
Bearing Type Ball
Shaft Diameter 0.63 "
Overload Protection Automatic
Length 15 "
Approvals cCSAus
Net Weight 27.148 lbs
Gross Weight 27.148 lbs
