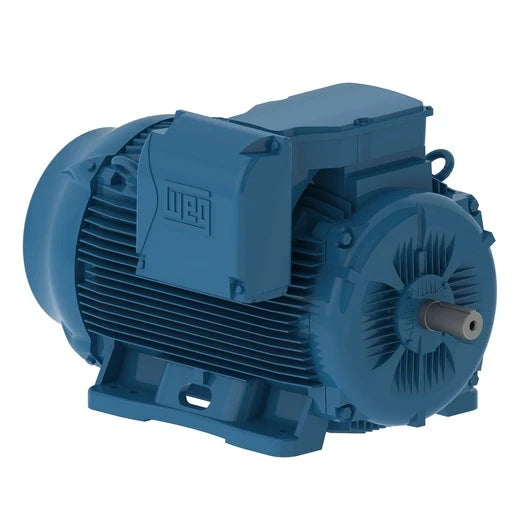

Weg Electric 50018ET3G449T-W22, 500 Hp, L447/9T Frame, 1800 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 11408295

Weg Electric 50018ET3G449T-W22, 500 Hp, L447/9T Frame, 1800 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 11408295

$45,028.66
$45,028.66
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 50018ET3G449T-W22, 500 Hp, L447/9T Frame, 1800 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 11408295

SPECIFICATIONS

Frame L447/9T
Output 500 HP (370 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1789 rpm
Slip 0.61 %
Rated voltage 460 V
Rated current 568 A
L. R. Amperes 4998 A
LRC 8.8x(Code J)
No load current 225 A
Rated torque 1470 ft.lb
Locked rotor torque 300 %
Breakdown torque 280 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 160 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 3463 lb
