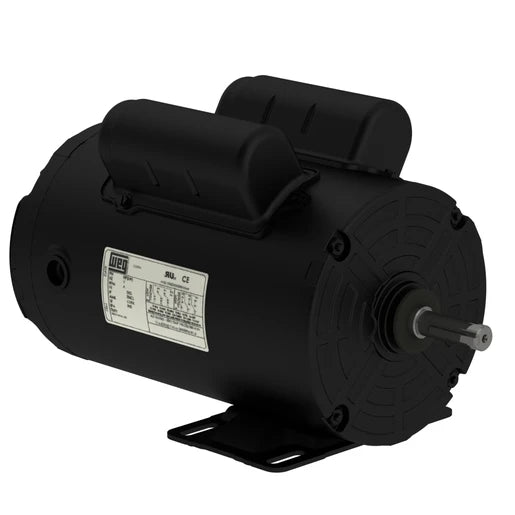

Weg Electric .5018AS1BPFW56-S, 0.50 Hp, 1800 Rpm, W56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15413673

Weg Electric .5018AS1BPFW56-S, 0.50 Hp, 1800 Rpm, W56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15413673

$299.04
$299.04
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .5018AS1BPFW56-S, 0.50 Hp, 1800 Rpm, W56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15413673

Specifications

Manufacturer Part Number .5018AS1BPFW56-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 0.5HP 4P W56 WCF2 RO S SI PH
Type Farm Duty
Horsepower 1/2 hp
Kilowatts 0.37 kW
Speed 1,800 RPM
Number of Poles 4
Phase 1
Frequency 60 Hz
NEMA Frame W56
AC Voltage 115 VAC, 208-230 VAC
Nominal Voltage 120 VAC, 208 VAC, 240 VAC
Enclosure Totally Enclosed Air Over
Mounting Foot Mount
Current Rating 4.2 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Rolled Steel
Bearing Type Ball
Shaft Diameter 0.63 "
Overload Protection Automatic
Length 11.1 "
Approvals cCSAus
Net Weight 45.936 lbs
Gross Weight 45.936 lbs
