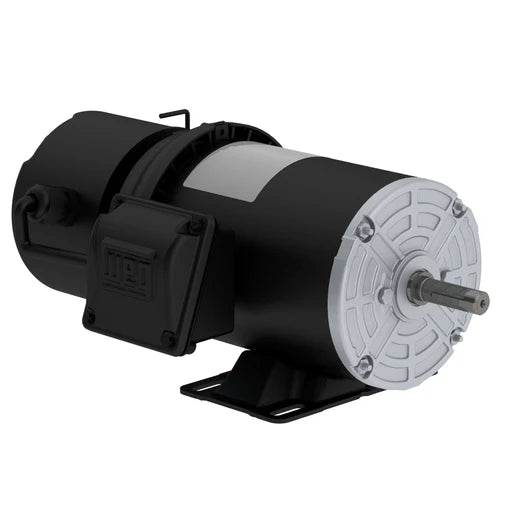

Weg Electric .5018ES3EBMW56-S, 0.5 HP, W56 FR, 3Ph, 208-230/460//190-220/380-415 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 14593616

Weg Electric .5018ES3EBMW56-S, 0.5 HP, W56 FR, 3Ph, 208-230/460//190-220/380-415 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 14593616

$983.45
$983.45
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .5018ES3EBMW56-S, 0.5 HP, W56 FR, 3Ph, 208-230/460//190-220/380-415 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 14593616

SPECIFICATIONS

Frame W56
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 208-230/460 V
Rated current 1.98-1.79/0.896 A
L. R. Amperes 11.9-10.8/5.38 A
LRC 6.0x(Code K)
No load current 1.20-1.40/0.698 A
Rated torque 1.52 ft.lb
Locked rotor torque 260 %
Breakdown torque 280 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.0399 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 26.6 lb
