Industrial Motors

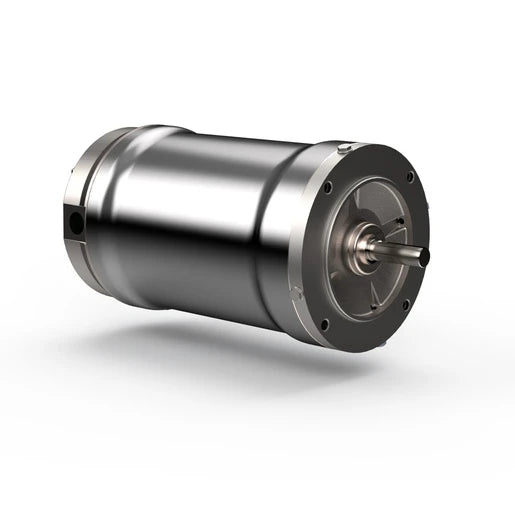

Weg Electric, .5018NT3EHD56CFL, 0.5 HP, 56C FR, 3Ph, 208-230/460 V, 60 Hz, 1800 RPM, TENV, HYDRO DUTY NEMA Standard Efficiency, 18298861

Weg Electric, .5018NT3EHD56CFL, 0.5 HP, 56C FR, 3Ph, 208-230/460 V, 60 Hz, 1800 RPM, TENV, HYDRO DUTY NEMA Standard Efficiency, 18298861

$1,264.69
$1,264.69
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, .5018NT3EHD56CFL, 0.5 HP, 56C FR, 3Ph, 208-230/460 V, 60 Hz, 1800 RPM, TENV, HYDRO DUTY NEMA Standard Efficiency, 18298861

SPECIFICATIONS

Standard NEMA MG-1
Frame 56C
Frequency 60 Hz
Number of poles 4
Degree of Protection IP69K
Synchronous speed 1800 rpm
Flange C
Mounting F-1/B14R(D)
Terminal box¹ Left position
Enclosure TENV
