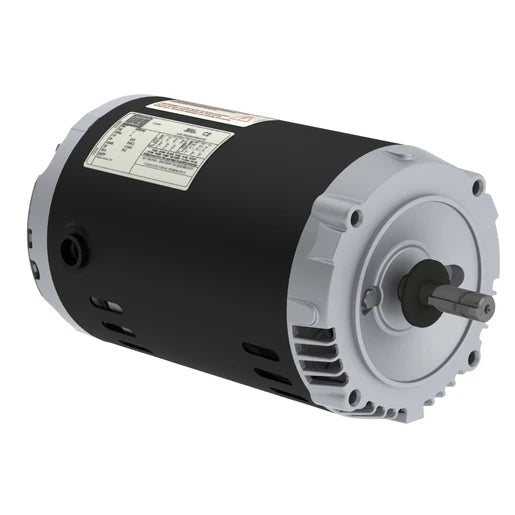

Weg Electric .5036OS3EJPRW56C-S, 0.5 Hp, 3600 Rpm, W56C Frame, 208-230/460//190-220/380-415Vac, TEFC, 1 PH, Footless, ROLLED STEEL, 14742950

Weg Electric .5036OS3EJPRW56C-S, 0.5 Hp, 3600 Rpm, W56C Frame, 208-230/460//190-220/380-415Vac, TEFC, 1 PH, Footless, ROLLED STEEL, 14742950

$199.36
$199.36
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .5036OS3EJPRW56C-S, 0.5 Hp, 3600 Rpm, W56C Frame, 208-230/460//190-220/380-415Vac, TEFC, 1 PH, Footless, ROLLED STEEL, 14742950

SPECIFICATIONS

Frame W56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3470 rpm
Slip 3.61 %
Rated voltage 208-230/460 V
Rated current 2.12-1.92/0.961 A
L. R. Amperes 14.2-12.9/6.44 A
LRC 6.7x(Code M)
No load current 1.27-1.47/0.737 A
Rated torque 0.757 ft.lb
Locked rotor torque 330 %
Breakdown torque 360 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.0147 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.60 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 62.0 dB(A)
Approx. weight³ 14.8 lb
