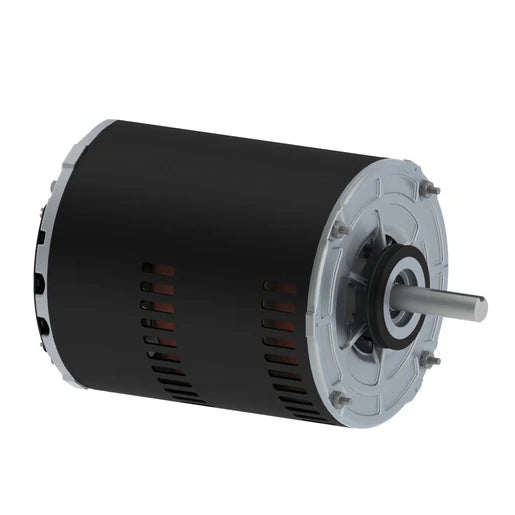

Weg Electric .5082OS1AEC56, 1/2 Hp, 1200/1800 Rpm, E56, 115 Vac, 1 PH, ODP, Foot-Mounted, 15665815

Weg Electric .5082OS1AEC56, 1/2 Hp, 1200/1800 Rpm, E56, 115 Vac, 1 PH, ODP, Foot-Mounted, 15665815

$305.27
$305.27
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .5082OS1AEC56, 1/2 Hp, 1200/1800 Rpm, E56, 115 Vac, 1 PH, ODP, Foot-Mounted, 15665815

Specifications

Manufacturer Part Number .5082OS1AEC56
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description 1/2-1/6HP 1800/1200 1 60 115, J2
Type Air Handling
Horsepower 1/2 hp
Kilowatts 0.37 kW
Number of Poles 4, 6
Phase 1
Frequency 60 Hz
NEMA Frame 56
AC Voltage 115 VAC
Nominal Voltage 120 VAC
Enclosure Open Drip Proof
Mounting Foot Mount
Current Rating 8.2 A
Service Factor 1
Inverter Duty No
Motor Type Foot Mount
Composition Rolled Steel
Bearing Type Ball
Shaft Diameter 0.45 "
Overload Protection None
Length 9.53 "
Approvals cCSAus
Net Weight 21.259 lbs
Gross Weight 21.259 lbs
