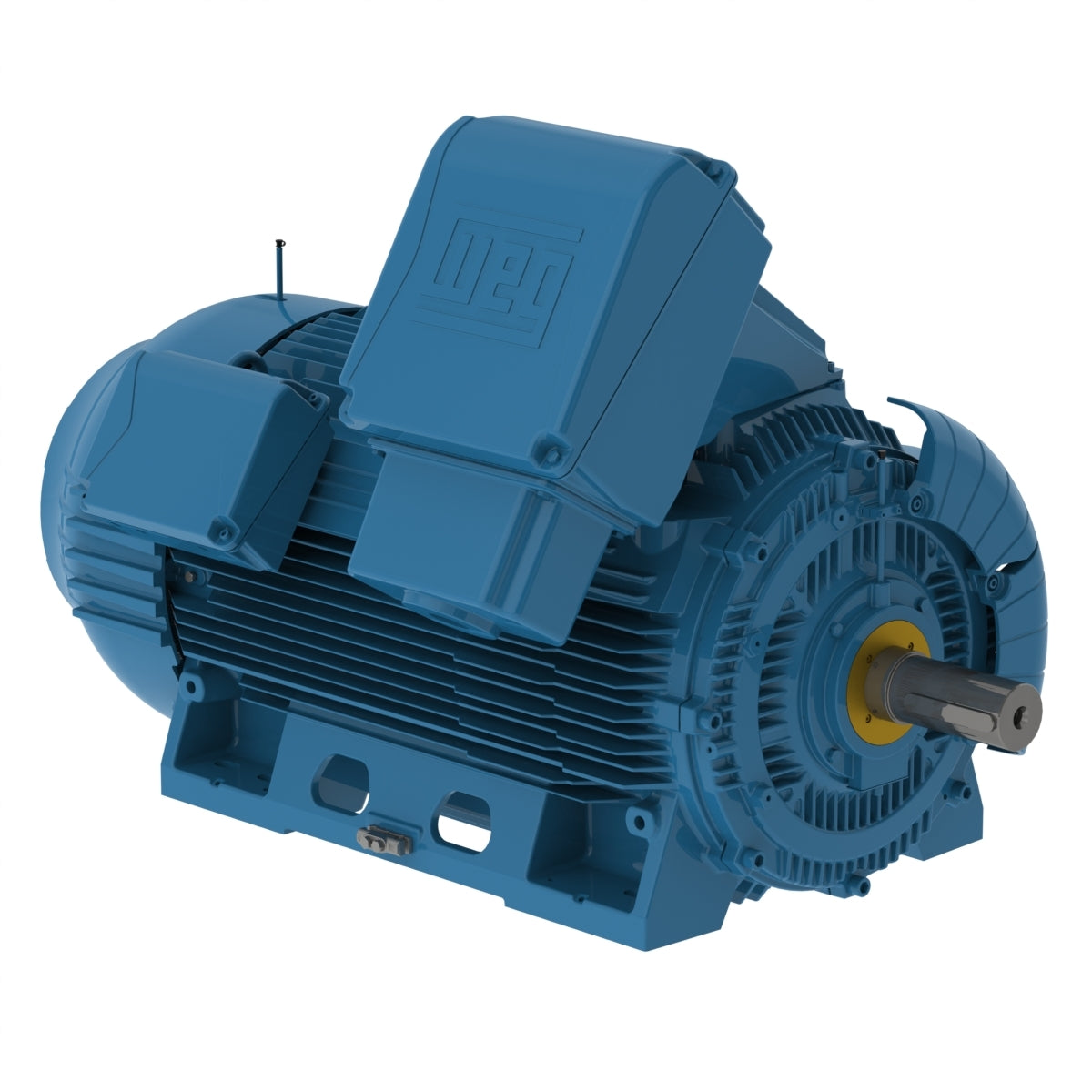

Weg Electric 60036ET3X5809-W50MV, 600 Hp, 3600 Rpm, 5809/10 Frame, 2300/4160 Vac, TEFC, 3 PH, Foot-mounted.

60036ET3X5809-W50MV, 600 Hp, 3600 Rpm, 5809/10 Frame, 2300/4160 Vac, TEFC, 3 PH, Foot-mounted.

Engineering Data

WEG W50 motors offer not only excellent performance, but comply with the strictest efficiency and safety criteria in the most severe applications. The compact design provides high performance, while their robust frames ensure low vibration levels. The new mechanical concept not only optimizes characteristics like mass and length, but also offers product versatility and reduced maintenance.

Note: This item can be derated to 50HP less than the rated power. Please contact Inside Sales for more information.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 2300/4160 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 600 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 5809/10
Output 600 HP (440 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3576 rpm
Slip 0.67 %
Rated voltage 2300 V
Rated current 132 A
L. R. Amperes 884 A
LRC 6.7x(Code G)
No load current 38.0 A
Rated torque 881 ft.lb
Locked rotor torque 110 %
Breakdown torque 229 %
Locked rotor time 25s (cold) 14s (hot)
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CW
Noise level² 82.0 dB(A)
