Industrial Motors

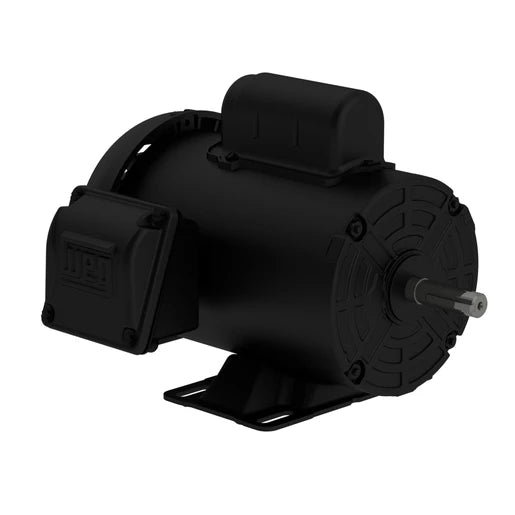

Weg Electric .7518ES1B56-S, 3/4 Hp, 1800 Rpm, 56C, 115/208-230 Vac, 1 PH, TEFC, Foot-Mounted, General Purpose Motor Rolled Steel

Weg Electric .7518ES1B56-S, 3/4 Hp, 1800 Rpm, 56C, 115/208-230 Vac, 1 PH, TEFC, Foot-Mounted, General Purpose Motor Rolled Steel

$309.72
$309.72
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .7518ES1B56-S, 3/4 Hp, 1800 Rpm, 56C, 115/208-230 Vac, 1 PH, TEFC, Foot-Mounted, General Purpose Motor Rolled Steel

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
View full details
