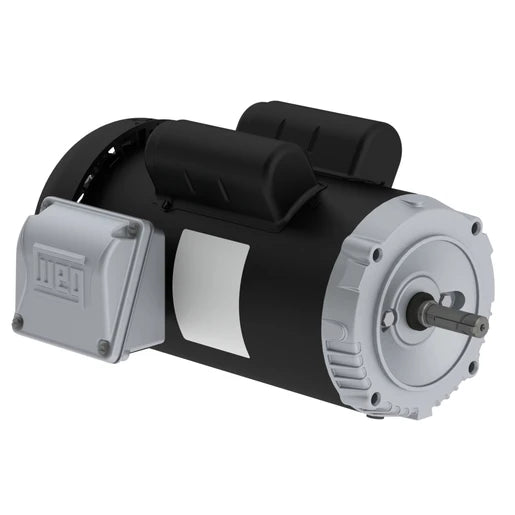

Weg Electric .7536ES1BJP56C-S, 0.75 Hp, 3600 Rpm, 56C Frame, 115-208/230 Vac, TEFC, 1 PH, Foot-Mounted, ROLLED STEEL, 14834309

Weg Electric .7536ES1BJP56C-S, 0.75 Hp, 3600 Rpm, 56C Frame, 115-208/230 Vac, TEFC, 1 PH, Foot-Mounted, ROLLED STEEL, 14834309

$284.80
$284.80
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .7536ES1BJP56C-S, 0.75 Hp, 3600 Rpm, 56C Frame, 115-208/230 Vac, TEFC, 1 PH, Foot-Mounted, ROLLED STEEL, 14834309

SPECIFICATIONS

Frame 56C
Output 0.75 HP (0.55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 8.00/4.42-4.00 A
L. R. Amperes 64.0/35.4-32.0 A
LRC 8.0x(Code L)
No load current 4.00/1.72-2.00 A
Rated torque 1.13 ft.lb
Locked rotor torque 280 %
Breakdown torque 290 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0394 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CCW
Noise level² 68.0 dB(A)
Approx. weight³ 26.3 lb
