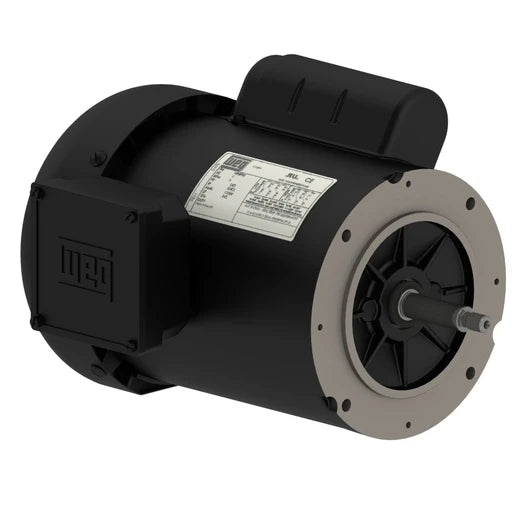

Weg Electric .7536ES1BJPR56J, 0.75 Hp, 3600 Rpm, 56J Frame, 115/208-230 Vac, TEFC, 1 PH, Footless, Centrifugal Pump Start Capacitor, 10749078

Weg Electric .7536ES1BJPR56J, 0.75 Hp, 3600 Rpm, 56J Frame, 115/208-230 Vac, TEFC, 1 PH, Footless, Centrifugal Pump Start Capacitor, 10749078

$299.04
$299.04
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .7536ES1BJPR56J, 0.75 Hp, 3600 Rpm, 56J Frame, 115/208-230 Vac, TEFC, 1 PH, Footless, Centrifugal Pump Start Capacitor, 10749078

SPECIFICATIONS

Frame B56J
Output 0.75 HP (0.55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 115/208-230 V
Rated current 10.4/5.00-5.20 A
L. R. Amperes 65.5/31.5-32.8 A
LRC 6.3x(Code M)
No load current 7.60/3.28-3.80 A
Rated torque 1.13 ft.lb
Locked rotor torque 300 %
Breakdown torque 290 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0396 sq.ft.lb
Insulation Class B
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CCW
Noise level² 55.0 dB(A)
Approx. weight³ 28.1 lb
