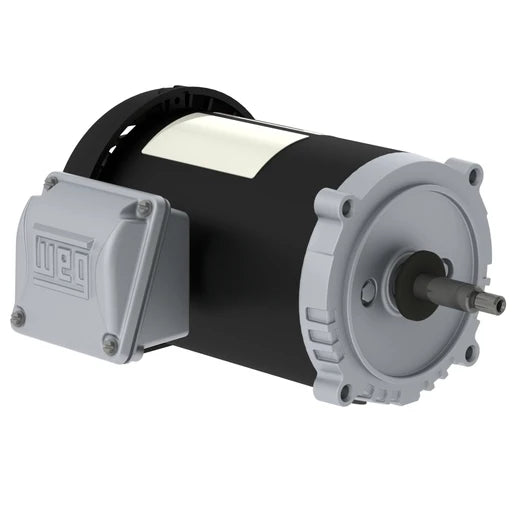

Weg Electric .7536ES3HJPRW56J-S, 0.75 Hp, 3600 Rpm, W56J Frame, 575 Vac, TEFC, 3 PH, Footless, ROLLED STEEL Standard Efficiency, 14410881

Weg Electric .7536ES3HJPRW56J-S, 0.75 Hp, 3600 Rpm, W56J Frame, 575 Vac, TEFC, 3 PH, Footless, ROLLED STEEL Standard Efficiency, 14410881

$267.89
$267.89
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .7536ES3HJPRW56J-S, 0.75 Hp, 3600 Rpm, W56J Frame, 575 Vac, TEFC, 3 PH, Footless, ROLLED STEEL Standard Efficiency, 14410881

SPECIFICATIONS

Frame W56J
Output 0.75 HP (0.55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3400 rpm
Slip 5.56 %
Rated voltage 575 V
Rated current 0.928 A
L. R. Amperes 6.40 A
LRC 6.9x(Code K)
No load current 0.542 A
Rated torque 1.16 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0168 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CCW
Noise level² 65.0 dB(A)
Approx. weight³ 16.2 lb
