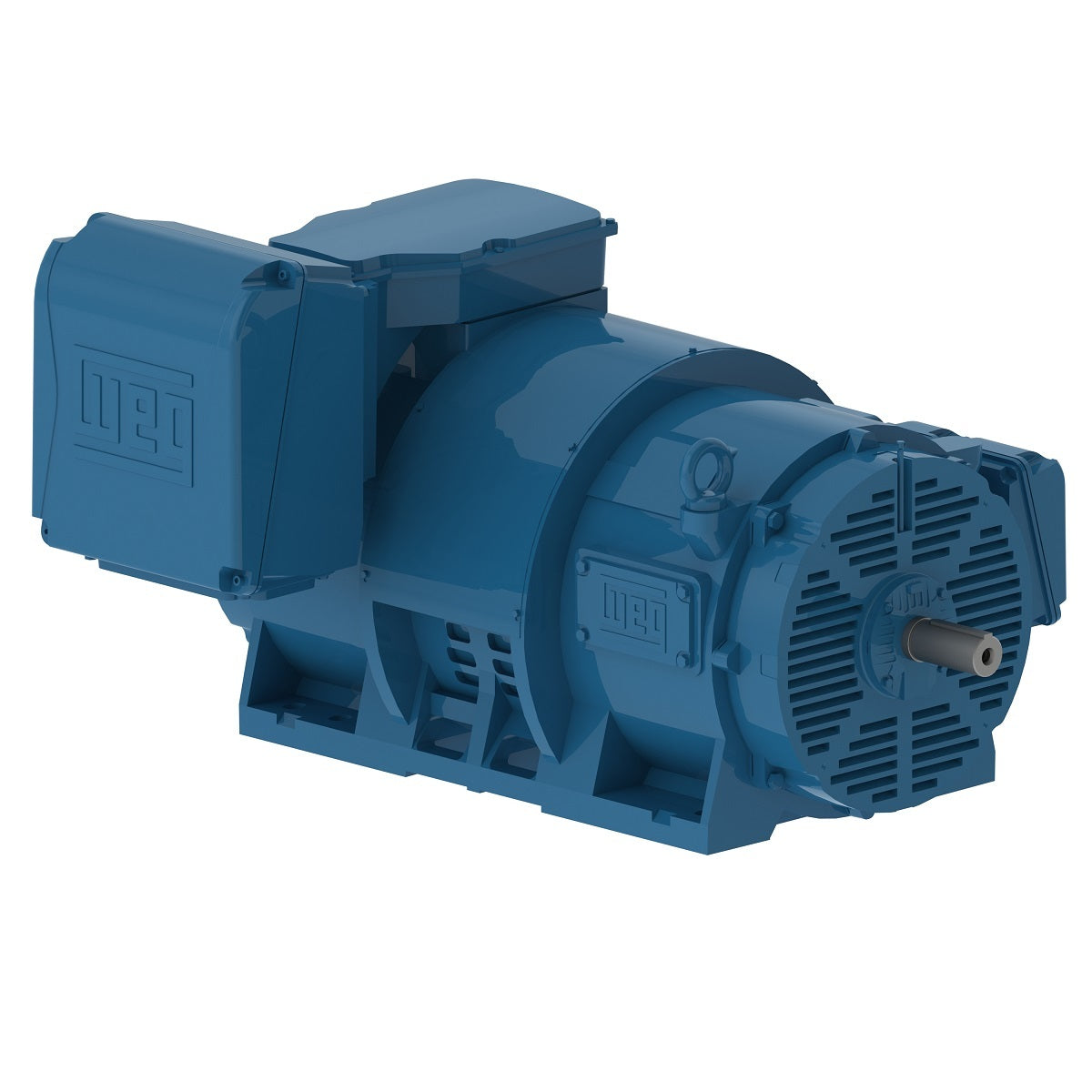

Weg Electric 80036OT3G5010S-RF, 800 Hp, 3600 Rpm, 5010/11TS Frame, 460 Vac, ODP, 3 PH, Foot-mounted, NEMA Premium Efficiency.

80036OT3G5010S-RF, 800 Hp, 3600 Rpm, 5010/11TS Frame, 460 Vac, ODP, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 800 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 5010/11TS
Output 800 HP (590 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3579 rpm
Slip 0.58 %
Rated voltage 460 V
Rated current 881 A
L. R. Amperes 6519 A
LRC 7.4x(Code H)
No load current 220 A
Rated torque 1170 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 89.0 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 86.0 dB(A)
